AEACBD081016-C2LG

Antennas RF Overview

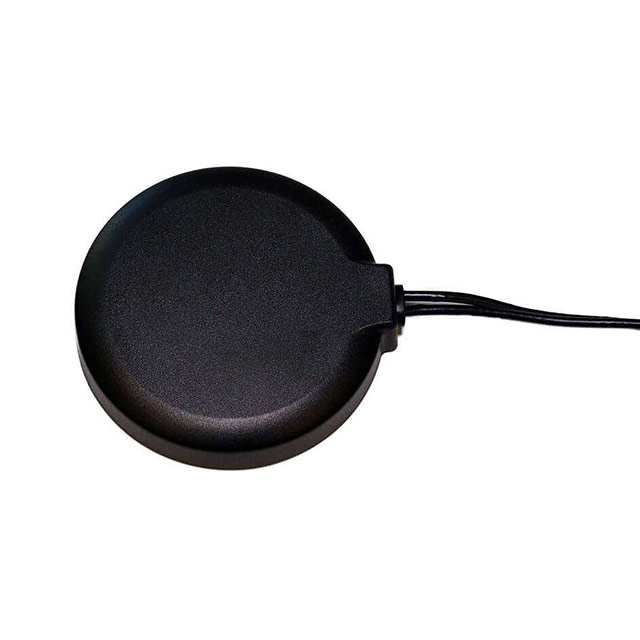

The AEACBD081016-C2LG is a 2-in-1 active cellular and GNSS antenna manufactured by Abracon. It supports LTE, GSM, 2G, 3G, 4G, NB-IoT, GPS, and GLONASS protocols. The operating frequency range spans from 698 MHz to 2.69 GHz. The unit features a magnetic puck mount design with an IP67 rating for outdoor durability. It includes a 3-meter RG174 cable terminating in an SMA male connector.

Antennas RF Feature Summary

• Integrates LTE cellular and GPS/GNSS reception into a single active module
• Magnetic puck mounting configuration for rapid installation on metal surfaces
• IP67 rated enclosure ensuring protection against dust and water immersion
• Pre-terminated with a 3-meter RG174 coaxial cable and SMA male connector

Antennas RF Applications

• IoT telematics and vehicle tracking systems
• Remote asset monitoring equipment
• Outdoor cellular communication gateways
• Fleet management hardware units

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required cable length and connector type. Confirm that the active LNA power requirements align with the host system's voltage supply. Ensure the SMA male interface is compatible with the device port. Check environmental ratings against deployment conditions. Validate regulatory compliance certifications for the target market region before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a combined cellular and GNSS solution is required for mobile or outdoor deployments. The magnetic mount facilitates easy attachment without permanent modification. The IP67 rating makes it suitable for harsh environments. Consider the active nature of the antenna for signal amplification needs. Verify frequency coverage meets all regional LTE and GPS band requirements.

Antennas RF Part Context

This component belongs to Abracon’s outdoor antenna portfolio designed for IoT connectivity. It is categorized under cellular antennas supporting GSM, LTE, and NB-IoT standards. The product line emphasizes ruggedized designs for reliable wireless communication in challenging industrial and transportation applications.

Antennas RF Replacement Considerations

The AEACBA081016-C2LG serves as an adhesive mount alternative within the same family. Both models share similar frequency ranges and protocol support. The primary difference lies in the mounting mechanism, requiring verification of surface compatibility and installation constraints.
