AEACBK046014-C2WG

$26.25

Description：RF ANT 2.45GHZ MODULE SMA CONN
Series：AEAC
Mfr：Abracon LLC
Package：Bulk

SKU:a7acc7fe812a Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEACBK046014-C2WG is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 2.45GHZ MODULE SMA CONN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEACBK046014-C2WG

Description：RF ANT 2.45GHZ MODULE SMA CONN
Series：AEAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, Navigation, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.483GHz
Antenna Type：Module
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2dBi
Features：LNA
Termination：SMA
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Screw
Height (Max)：0.571" (14.50mm)
Applications：Bluetooth, GLONASS, GPS, ISM, Wi-Fi, Zigbee™
Power - Max：10 W

Antennas RF datasheet and documents for AEACBK046014-C2WG

AEACBK046014-C2WG

Antennas RF Overview

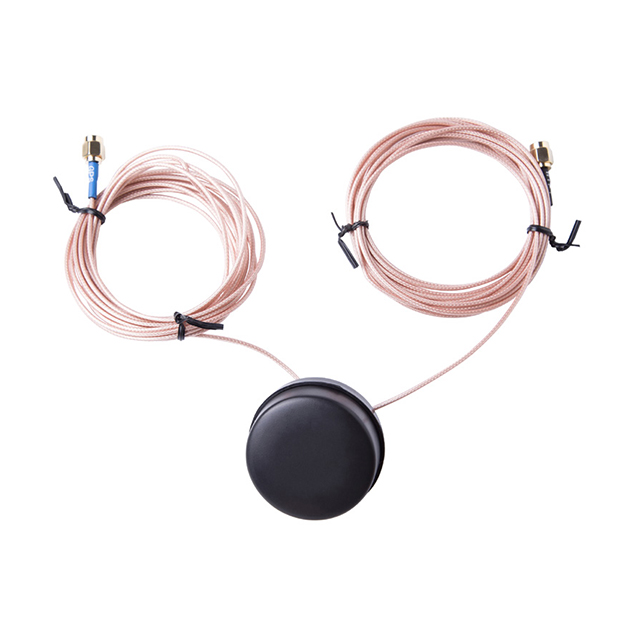

The AEACBK046014-C2WG is a 2-in-1 screw-mount puck antenna by Abracon LLC, integrating Wi-Fi and GPS/GLONASS capabilities. It operates across frequencies from 1.57442 GHz to 5.825 GHz, supporting Bluetooth, ZigBee, and ISM protocols. The unit features an SMA male connector attached via a 3-meter RG178 cable. Designed for outdoor durability, it carries an IP67 rating. Key specifications include a center frequency of 2.44 GHz and 5.31 GHz, with dimensions of 14.5 mm length and 53 mm height.

Antennas RF Feature Summary

Combines Wi-Fi and GPS/GLONASS reception in a single compact puck form factor
Provides IP67 environmental sealing for reliable outdoor deployment
Includes a 3-meter RG178 cable terminating in an SMA male connector
Supports multiple wireless protocols including Bluetooth, ZigBee, and ISM bands

Antennas RF Applications

M2M communication modules
Telematics systems
Commercial vehicle tracking
Fleet management solutions
Remote technology monitoring

Antennas RF Procurement Notes

Verify the specific SMA connector gender and cable length requirements against system interface constraints. Confirm that the IP67 rating meets the installation environment's exposure standards. Ensure the operating frequency range aligns with local regulatory spectrum allocations for Wi-Fi and GNSS usage.

Antennas RF Selection Notes

Select this component when integrated Wi-Fi and GNSS functionality is required in a single physical unit. The screw-mount design facilitates secure attachment to metal surfaces or enclosures. Consider the 3-meter cable length for routing flexibility between the antenna location and the RF module interface.

Antennas RF Part Context

This model belongs to Abracon’s outdoor active antenna portfolio, designed for robust performance in harsh environments. It addresses the need for consolidated RF front-end components in mobile and industrial applications where space and mounting simplicity are critical factors.
