AEACBK050048-MW2

$24.48

Description：RF ANT 2X DUALBAND WIFI MIMO SMA
Series：AEAC
Mfr：Abracon LLC
Package：Bulk,Bulk

SKU:e4d1f4534e2e Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEACBK050048-MW2 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 2X DUALBAND WIFI MIMO SMA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEACBK050048-MW2

Description：RF ANT 2X DUALBAND WIFI MIMO SMA
Series：AEAC
Mfr：Abracon LLC
Package：Bulk,Bulk
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz
Frequency Range：2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz
Antenna Type：Dome
Number of Bands：2
VSWR：2.5
Return Loss：-
Gain：2dBi
Features：-
Termination：SMA Male (2)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：1.889" (48.00mm)
Applications：Bluetooth, ISM, Wi-Fi, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for AEACBK050048-MW2

AEACBK050048-MW2

Antennas RF Overview

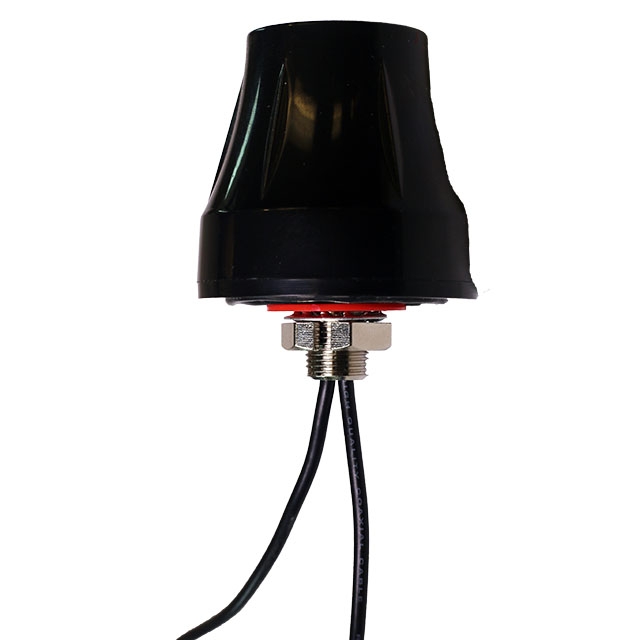

The Abracon AEACBK050048-MW2 is a dual-band WiFi MIMO antenna designed for external applications. It operates across the 2.4 GHz and 5 GHz ISM bands, with a frequency range of 2.4 to 5.825 GHz. The unit features two SMA male connectors and includes two 3-meter LMR100 cables. It has a cylindrical mechanical form factor measuring ø50.0 x 48.0 mm and offers linear polarization.

Antennas RF Feature Summary

Dual-band MIMO capability supporting both 2.4 GHz and 5 GHz WiFi frequencies
IP67 rated construction suitable for outdoor environmental exposure
Integrated screw-mount design for secure installation on flat surfaces

Antennas RF Applications

Outdoor WiFi access point deployment
Industrial IoT gateway connectivity
Smart city infrastructure networking

Antennas RF Procurement Notes

Verify that the specific order includes the required cable length and connector type. Confirm IP67 sealing integrity requirements match the installation environment. Ensure SMA male compatibility with existing RF interfaces before procurement.

Antennas RF Selection Notes

Select this model when dual-band MIMO performance is required for outdoor environments. The integrated cable simplifies routing compared to panel-mount alternatives. Verify that the physical dimensions fit the mounting location constraints.

Antennas RF Part Context

This component belongs to Abracon's external cellular and WiFi antenna portfolio. It complements other screw-mount solutions by providing dedicated dual-band support. The product line focuses on robust outdoor connectivity for industrial and commercial networks.
