AEACBK050048-SW2

Antennas RF Overview

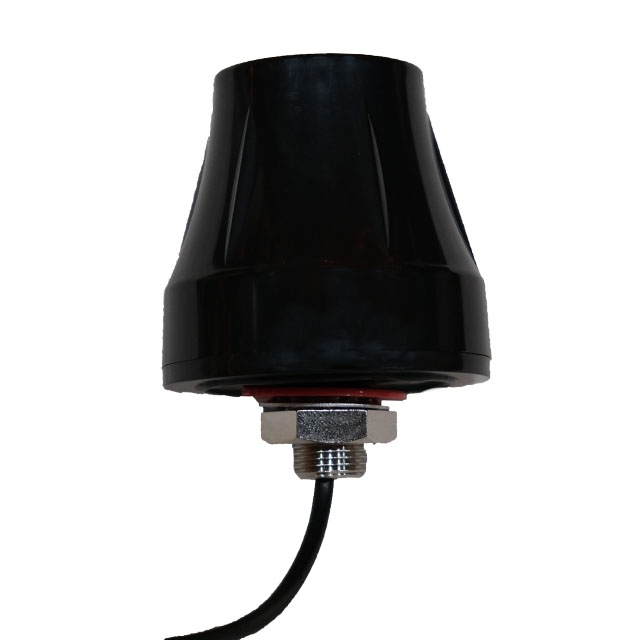

The Abracon AEACBK050048-SW2 is a dual-band external dome antenna designed for WiFi and ISM applications. It operates across two frequency ranges: 2400MHz to 2483.5MHz and 4900MHz to 5825MHz. The component provides a gain of 2dBi with a standard 50Ω impedance. It features linear polarization and utilizes an SMA connector interface. The physical form factor is a puck-style module intended for outdoor or fixed installation.

Antennas RF Feature Summary

• Dual-band operation supporting 2.4GHz and 5GHz WiFi/ISM frequencies
• Linear polarization for consistent signal transmission
• SMA connector interface for standard RF integration

Antennas RF Applications

• WiFi network infrastructure deployment
• ISM band communication systems
• Internet connectivity hardware modules

Antennas RF Procurement Notes

Verify the specific datasheet version for the AEACBK050048-SW2 model before procurement, as manufacturer specifications may undergo revisions. Confirm that the SMA connector type matches your system requirements. Ensure environmental ratings align with the intended installation location. Cross-reference the RoHS compliance status if required by your supply chain standards. Validate the lead time estimates provided by authorized distributors against current production schedules.

Antennas RF Selection Notes

Select this antenna when dual-band coverage at 2.4GHz and 5GHz is required within a single compact unit. The 2dBi gain offers moderate performance suitable for general-purpose wireless links. The 50Ω impedance ensures compatibility with standard RF circuitry. Consider the dome form factor for aesthetic or aerodynamic constraints in outdoor installations. Verify cable length options if LMR100 pre-terminated cables are needed for immediate deployment.

Antennas RF Part Context

This component belongs to Abracon's external antenna portfolio, specifically engineered for wireless communication devices. It complements other RF solutions by providing reliable connectivity for IoT and networking equipment. The product line emphasizes durability and ease of installation for various industrial and commercial applications.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate antennas with matching SMA interfaces and dual-band capabilities if replacement is necessary.
