AEACBK081014-M698

Antennas RF Overview

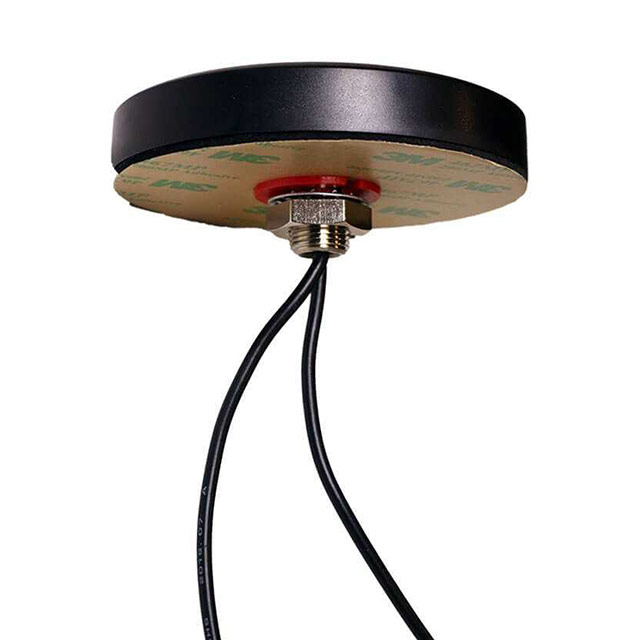

The Abracon AEACBK081014-M698 is a screw-mount MIMO antenna designed for 4G and LTE applications. It operates across two frequency bands: 698 MHz to 960 MHz and 1.71 GHz to 2.69 GHz. The unit features a round dome style with dimensions of approximately 81.3 mm diameter and 14.6 mm length. It provides a gain of 2.5 dBi, a VSWR of 3.5, and maintains a 50-ohm impedance. The antenna supports linear polarization and includes RG174 cables for termination.

Antennas RF Feature Summary

• Dual-band operation supporting 4G/LTE frequency ranges
• MIMO configuration for enhanced signal reliability
• IP67 ingress protection rating for environmental durability
• Screw-mount installation style

Antennas RF Applications

• Telematics systems
• Fleet monitoring solutions
• Video surveillance infrastructure
• Small cell (Fentocell) deployments
• Machine-to-machine (M2M) communication devices

Antennas RF Procurement Notes

Verify the specific cable assembly details, as sources indicate RG174 type. Confirm the exact operating temperature range, noting conflicting data between -40°C/+85°C and other potential industrial standards. Ensure the mounting hardware matches the screw-mount specification. Check for any regional regulatory approvals required for the specified frequency bands in your target market before finalizing procurement.

Antennas RF Selection Notes

Select this component when a robust, weather-resistant antenna is required for outdoor or harsh environments due to its IP67 rating. It is suitable for applications needing dual-band coverage for both lower and upper LTE spectrum. Consider the physical dimensions and screw-mount requirement during mechanical design integration. Verify that the 2.5 dBi gain meets the link budget requirements for the specific deployment scenario.

Antennas RF Part Context

This model belongs to Abracon's RF antenna portfolio, specifically targeting mobile telecommunications infrastructure. It complements other Abracon components by providing reliable connectivity for telematics and IoT devices. The product is distinct from Abracon's crystal oscillators, such as the AMPMGDB series, serving a completely different function in RF signal transmission rather than timing.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. When evaluating alternatives, ensure compatibility with the 698-960 MHz and 1.71-2.69 GHz bands. Match the 50-ohm impedance and linear polarization characteristics. Verify that any replacement also offers IP67 protection and similar physical mounting constraints.
