AEACBK081014-S698

Antennas RF Overview

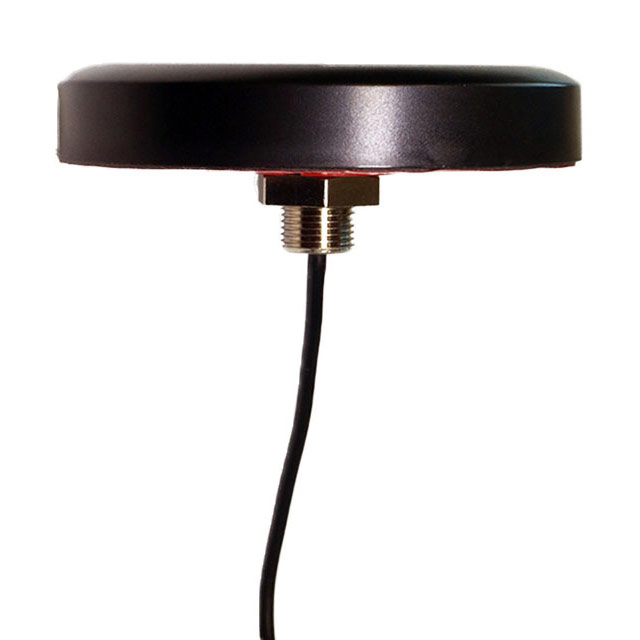

The Abracon AEACBK081014-S698 is an external cellular antenna designed for 2G, 3G, and 4G LTE networks. It features a dome-style puck design with a screw mount interface and an SMA male connector. The unit operates within a frequency range of 1.71 GHz to 2.69 GHz, providing full band coverage for LTE applications. Key electrical specifications include a gain of 3 dBi and a Voltage Standing Wave Ratio (VSWR) of 3. The antenna exhibits linear polarization and low return loss characteristics. It is IP67 rated for environmental protection and measures Ø81.3 x 14.6 mm.

Antennas RF Feature Summary

• IP67 rated environmental protection for outdoor durability
• Screw mount installation with SMA male connector
• Full band coverage for 2G, 3G, and 4G LTE frequencies
• Low return loss and high gain performance

Antennas RF Applications

• IoT cellular connectivity modules
• Outdoor wireless communication devices
• LTE router and gateway installations
• Industrial telemetry equipment

Antennas RF Procurement Notes

Verify the specific ordering suffix S698 matches the required connector type and mounting configuration. Confirm that the IP67 rating aligns with the intended environmental exposure requirements. Ensure the SMA male interface is compatible with the host device's RF port. Cross-reference the frequency range against local network band allocations to guarantee operational validity.

Antennas RF Selection Notes

Select this model when a robust, weather-resistant external antenna is required for cellular IoT or LTE applications. The screw mount design offers secure physical attachment compared to adhesive options. Consider the 3 dBi gain and VSWR limits for system link budget calculations. This component suits scenarios demanding reliable signal reception in challenging environments.

Antennas RF Part Context

This part belongs to Abracon’s external cellular antenna portfolio engineered for IoT solutions. It complements other Abracon antennas like the AEACAC198013-S698 by offering a distinct screw-mount form factor. The series targets developers needing durable, high-performance RF components for long-range wireless data transmission.

Antennas RF Replacement Considerations

The AEACAC198013-S698 is a documented alternative from the same manufacturer. Verify connector compatibility and mounting style differences before substitution. Ensure the replacement maintains the required IP67 rating and frequency coverage for the specific application.
