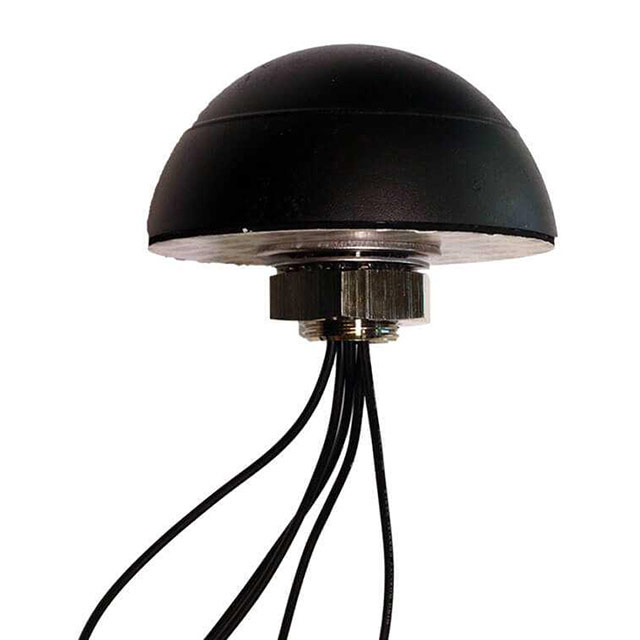

AEACBK110053-MLWG is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is GPS/GLON/LTE/WIFI MIMO COMB ANT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AEACBK110053-MLWG
- Description：GPS/GLON/LTE/WIFI MIMO COMB ANT
- Series：AEAC
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：Cellular, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：829MHz, 1.5925GHz, 2.2GHz, 2.442GHz, 5.3625GHz
- Frequency Range：698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.484GHz, 4.9GHz ~ 5.825GHz
- Antenna Type：Dome
- Number of Bands：5
- VSWR：2, 2.5, 3
- Return Loss：-
- Gain：2dBi, 3dBi
- Features：Cable - 3m, LNA
- Termination：SMA Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：2.087" (53.00mm)
- Applications：2G, 3G, 4G, GLONASS, GSM, GPS, GNSS, LTE, Wi-Fi
- Power - Max：-
Antennas RF datasheet and documents for AEACBK110053-MLWG
Antennas RF Overview
The AEACBK110053-MLWG is a multi-band RF antenna designed for GPS, GLONASS, LTE, and Wi-Fi applications. It supports frequency ranges of 1575.42 to 1610 MHz, 698 to 960 MHz, 1710 to 2690 MHz, and 2400 to 2483.5 MHz. The component features an SMA male screw mount connector and utilizes MIMO technology for enhanced signal performance.
Antennas RF Feature Summary
- Supports multi-band operation across GNSS, cellular, and Wi-Fi frequencies
- Integrates MIMO technology for improved signal reliability
- Features SMA male screw mount connector for secure installation
Antennas RF Applications
- Telematics operations
- GPS navigation systems
- LTE communication modules
- Wi-Fi connectivity devices
Antennas RF Procurement Notes
Verify the specific connector type and mounting configuration against system requirements before ordering. Confirm that the SMA male interface matches the host device's input port. Ensure the frequency bands align with regional regulatory standards and intended operational zones. Check datasheet for mechanical dimensions to validate space constraints within the enclosure design.
Antennas RF Selection Notes
Select this antenna when multi-band coverage including GNSS, LTE, and Wi-Fi is required in a single compact unit. The MIMO capability makes it suitable for high-performance data transmission environments. Consider the screw mount option if vibration resistance and secure physical attachment are critical for the deployment scenario.
Antennas RF Part Context
This component belongs to Abracon LLC's external antenna portfolio, specifically engineered for integrated wireless solutions. It combines multiple radio technologies into one hardware unit, reducing the need for separate antennas for different frequency bands. The design focuses on maintaining low VSWR across all supported bands to ensure efficient power transfer.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing RF front-end designs before attempting to source alternative components from other manufacturers.
