AEACBK189085-MLWFGL5

Antennas RF Overview

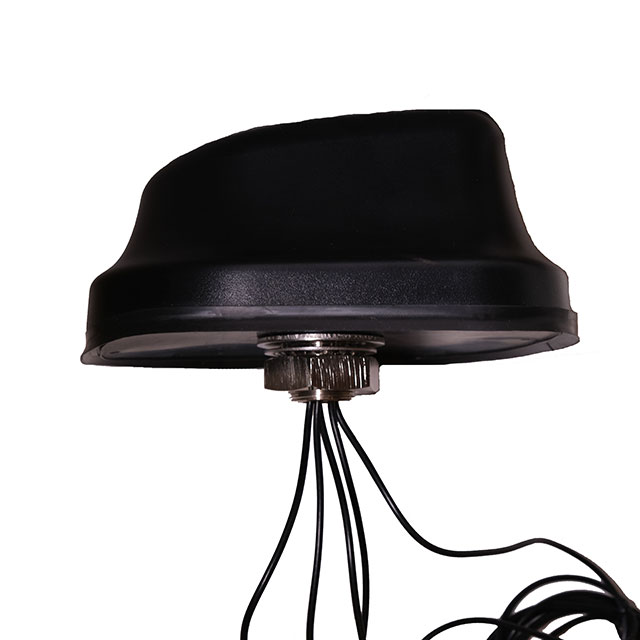

The AEACBK189085-MLWFGL5 is a five-in-one external antenna module integrating LTE MIMO, Wi-Fi, GNSS, and AM/FM reception. It features dual 4G/LTE support, active GPS L1/L5 with an integrated Low Noise Amplifier (LNA) providing 28 dB gain, and RHCP polarization for GNSS. The unit measures 189.0 x 182.0 x 85.0 mm and carries an IP67 rating for environmental protection. It utilizes a 3-meter RG-174 cable terminating in an SMA male connector. Operating frequencies span 76–108 MHz, 520 kHz–1.629 MHz, 698–960 MHz, and 1710–2690 MHz, with a standard 50 Ohm impedance.

Antennas RF Feature Summary

• Integrates dual LTE MIMO, Wi-Fi, Active GPS, and AM/FM into a single compact housing
• Includes built-in LNA for enhanced GNSS signal sensitivity
• IP67 rated enclosure ensures durability in harsh environments
• Pre-terminated with 3-meter RG-174 cable and SMA connector

Antennas RF Applications

• IoT gateways requiring multi-radio connectivity
• Vehicle telematics systems
• Industrial monitoring equipment
• Smart city infrastructure nodes

Antennas RF Procurement Notes

Verify the specific frequency bands required by your target market against the datasheet specifications. Confirm that the SMA male interface matches your host device connectors. Ensure the 3-meter cable length accommodates your installation layout without excessive bending or tension. Check that the panel mount dimensions fit your enclosure design constraints.

Antennas RF Selection Notes

Select this model when a single solution is needed to replace separate antennas for cellular, Wi-Fi, and satellite navigation. The integrated LNA makes it suitable for applications where GNSS signals may be weak. Consider the physical dimensions and IP67 rating if the deployment environment requires weather resistance. Verify compatibility with both 2.4 GHz and 5 GHz Wi-Fi standards if dual-band operation is necessary.

Antennas RF Part Context

This component belongs to Abracon’s IoT antenna portfolio, designed to consolidate multiple wireless protocols. It addresses space-constrained designs by combining five distinct radio functions. The product line emphasizes ruggedness and ease of integration through pre-cabled assemblies. It serves as a comprehensive solution for devices needing simultaneous cellular, local network, and positioning capabilities.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. When replacing, ensure the new antenna supports the same LTE bands and active GPS requirements. Verify that the replacement maintains the IP67 rating and SMA connector type to preserve system integrity.
