AEACCA115021-S850

$6.50

Description：RF ANT 1.71GHZ FLT BAR SMA FAKRA
Series：AEAC
Mfr：Abracon LLC
Package：Bulk

SKU:c658440355b6 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEACCA115021-S850 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 1.71GHZ FLT BAR SMA FAKRA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEACCA115021-S850

Description：RF ANT 1.71GHZ FLT BAR SMA FAKRA
Series：AEAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：892MHz, 1.94GHz
Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type：Flat Bar
Number of Bands：2
VSWR：2
Return Loss：-
Gain：2dBi
Features：-
Termination：Fakra, SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.228" (5.80mm)
Applications：GSM
Power - Max：10 W

Antennas RF datasheet and documents for AEACCA115021-S850

AEACCA115021-S850

Antennas RF Overview

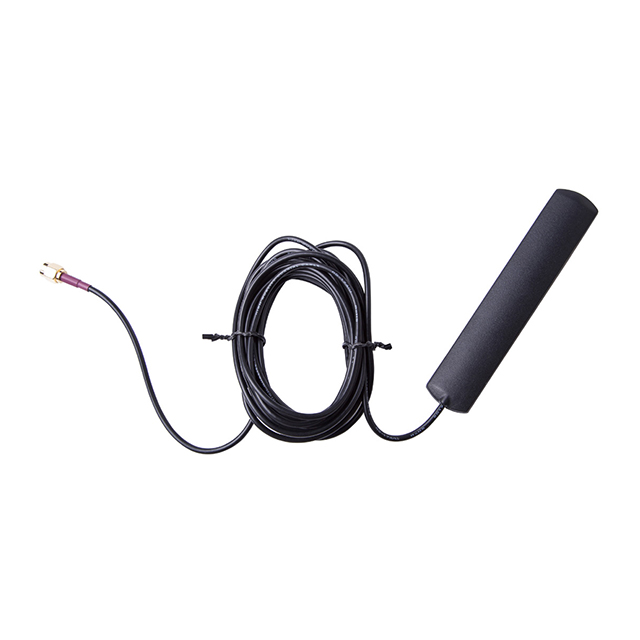

The Abracon AEACCA115021-S850 is a cellular adhesive blade antenna designed for mobile station applications. It operates within the frequency range of 1.71GHz to 2.17GHz, providing a gain of 2dBi with linear polarization. The unit features a maximum VSWR of 2 and utilizes an SMA male connector. Physical specifications include a thickness of 5.8mm and IP66 ingress protection rating. The assembly incorporates 3M RG174 cable for connectivity.

Antennas RF Feature Summary

Blade-style external antenna design suitable for indoor mounting
Dual-band coverage supporting GSM, LTE, and cellular standards
Adhesive mounting feature for secure installation
IP66 rated enclosure for environmental protection

Antennas RF Applications

GSM network devices
LTE communication modules
Mobile station equipment
Indoor cellular signal reception systems

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against system interface specifications before procurement. Confirm that the adhesive backing material is compatible with the intended mounting surface to ensure long-term mechanical stability. Check regulatory compliance documentation for target markets to ensure adherence to local radio frequency emission standards and safety regulations.

Antennas RF Selection Notes

Select this component when a low-profile, adhesive-mounted solution is required for cellular bands between 1.71GHz and 2.17GHz. Consider the IP66 rating for environments requiring dust and water resistance. Ensure the SMA male connector matches the host device interface. Evaluate the 2dBi gain against link budget requirements for the specific deployment scenario.

Antennas RF Part Context

This model belongs to Abracon's family of cellular blade antennas. It is engineered for compact integration into mobile and stationary communication hardware. The design prioritizes space efficiency while maintaining reliable signal transmission for modern cellular protocols.
