AEAGMK148060-S1575

Antennas RF Overview

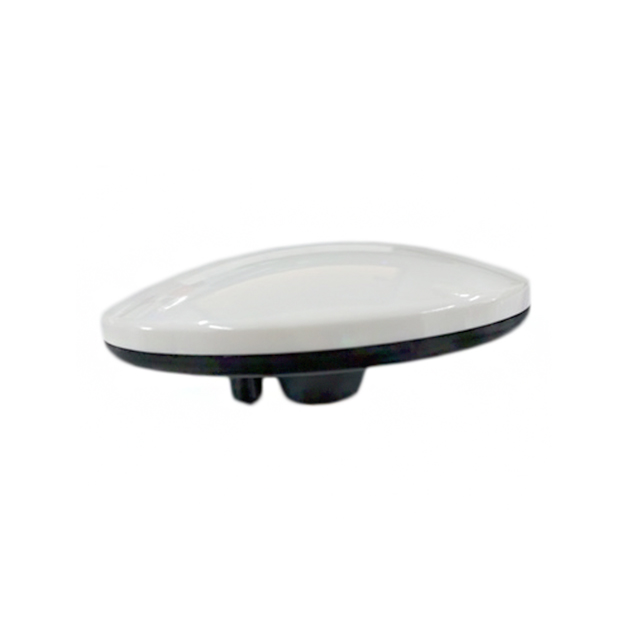

The AEAGMK148060-S1575 is an active dome antenna manufactured by Abracon LLC, designed for global navigation satellite systems. It operates within a frequency range of 1.598 GHz to 1.609 GHz, supporting GPS, GLONASS, Galileo, and Beidou constellations. Key electrical specifications include a voltage standing wave ratio (VSWR) of 1.5, a gain of 4.5 dBi, and right-hand circular polarization. The unit features an SMA connector interface and utilizes a screw mounting mechanism for secure installation.

Antennas RF Feature Summary

• Supports multi-constellation GNSS signals including GPS, GLONASS, Galileo, and Beidou
• Features right-hand circular polarization for improved signal integrity
• Designed as an active antenna with integrated amplification
• Utilizes a durable dome form factor suitable for outdoor deployment

Antennas RF Applications

• Real-Time Kinematic (RTK) positioning systems using u-blox ZED-F9P modules
• Precision agriculture equipment requiring high-accuracy location data
• Maritime navigation and vessel tracking systems
• Surveying and mapping instrumentation

Antennas RF Procurement Notes

Verify the specific connector type and mounting hardware requirements against your system design before ordering. Confirm that the active antenna power supply specifications match your host device's output capabilities. Ensure the operating frequency range aligns with your target GNSS constellations. Check for any environmental sealing requirements if deploying in harsh conditions.

Antennas RF Selection Notes

Select this component when multi-constellation support is required for high-precision applications. The active design offers higher sensitivity compared to passive alternatives. Consider the physical dimensions and mounting style to ensure compatibility with your enclosure or vehicle roof. Evaluate the need for right-hand circular polarization to mitigate multipath interference in complex environments.

Antennas RF Part Context

This model belongs to Abracon's RF antenna portfolio, specifically targeting GNSS applications. It is categorized under outdoor antennas and dome types. The product line emphasizes reliability and performance for professional navigation and surveying equipment. Abracon provides datasheets detailing electrical characteristics and mechanical drawings for integration purposes.

Antennas RF Replacement Considerations

The Taoglas FMA253.A.LF.001 is documented as a compatible alternative for RTK applications utilizing the u-blox ZED-F9P module. Verify electrical parameters such as gain, VSWR, and connector type before substituting. Ensure mechanical mounting interfaces are compatible with existing hardware.

Antennas RF FAQ

Which GNSS constellations does the AEAGMK148060-S1575 support?

It supports GPS, GLONASS, Galileo, and Beidou.

What is the polarization type of this antenna?

The antenna uses right-hand circular polarization.

Is this antenna suitable for RTK applications?

Yes, it is documented as compatible with RTK systems using the u-blox ZED-F9P module.
