AEARBA048014-SG3

Antennas RF Overview

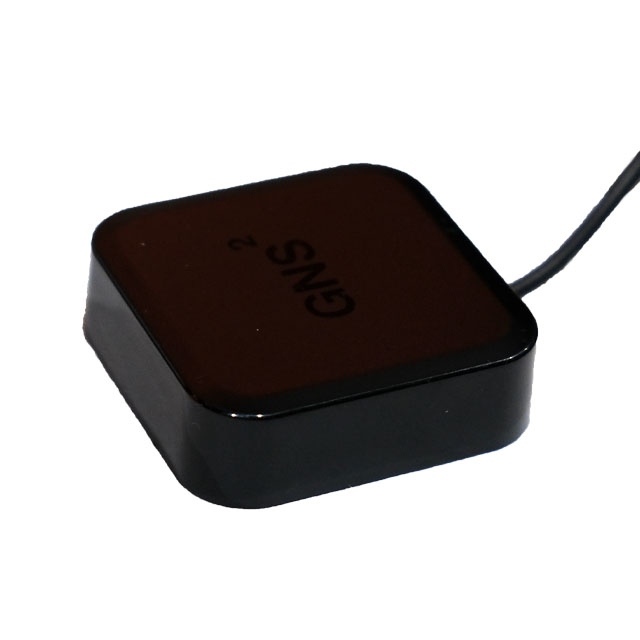

The AEARBA048014-SG3 is a multiband active GNSS external antenna designed for GPS, GLONASS, and Beidou applications. It features Right-Hand Circular Polarization (RHCP) with a 50Ω impedance. The unit supports frequencies at 1561 MHz, 1575 MHz, and 1602 MHz. Physical dimensions are 48.5 x 47.0 x 14.0 mm. Gain specifications include 5.78 dBi, 4.27 dBi, and 5.65 dBi respectively. It utilizes an SMA connector and adhesive termination.

Antennas RF Feature Summary

• Supports multiband reception for GPS, GLONASS, and Beidou systems
• Features Right-Hand Circular Polarization (RHCP)
• Designed with low Voltage Standing Wave Ratio (VSWR)
• Includes integrated active circuitry for signal amplification

Antennas RF Applications

• Global Navigation Satellite System (GNSS) receivers
• GPS tracking devices
• GLONASS positioning modules
• Beidou navigation equipment

Antennas RF Procurement Notes

Verify the specific frequency bands and gain values required for your application against the official Abracon datasheet. Ensure compatibility with the SMA connector type and adhesive mounting method. Confirm that the active antenna design aligns with your system's power supply capabilities and noise figure requirements before finalizing procurement.

Antennas RF Selection Notes

Select this component when multiband GNSS support across GPS, GLONASS, and Beidou is necessary. The RHCP characteristic ensures reliable signal reception in various orientations. Consider the physical footprint of 48.5 x 47.0 x 14.0 mm for integration constraints. The active design requires appropriate biasing within the host system to function correctly.

Antennas RF Part Context

This part belongs to Abracon LLC's portfolio of RF antennas and GNSS solutions. It is categorized as an external active antenna intended for robust satellite navigation performance. The product line focuses on providing reliable connectivity for global positioning applications across multiple regional and international satellite constellations.

Antennas RF Replacement Considerations

Consult official Abracon documentation for direct substitutes. Cross-reference pinouts, impedance, and mechanical dimensions when evaluating alternatives. Verify that any replacement maintains the same multiband frequency coverage and polarization characteristics.
