AEARBD040038-S1621 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 1.6GHZ MODULE SMA ML MAG. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AEARBD040038-S1621
- Description：RF ANT 1.6GHZ MODULE SMA ML MAG
- Series：AEAR
- Mfr：Abracon LLC
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.621GHz
- Frequency Range：1.616GHz ~ 1.626GHz
- Antenna Type：Module
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：0.46dBi
- Features：-
- Termination：SMA
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：0.484" (12.30mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for AEARBD040038-S1621
Antennas RF Overview

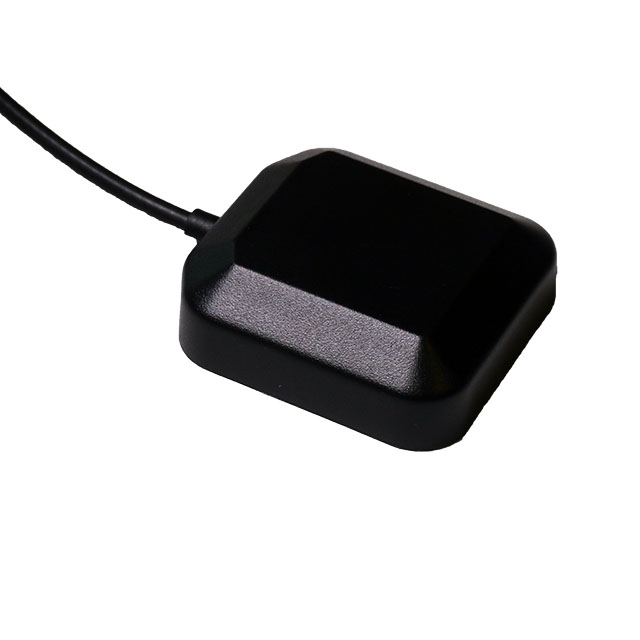

The AEARBD040038-S1621 is an external Iridium antenna manufactured by Abracon LLC, designed for operation within the 1616 to 1626.5 MHz frequency range. It features a square form factor and utilizes an SMA connector for interface connectivity. The component supports Right-Hand Circular Polarization (RHCP) and incorporates magnetic mounting capabilities to facilitate straightforward installation on various surfaces. This antenna is specifically engineered for satellite communication applications requiring reliable signal reception in the L-band spectrum.
Antennas RF Feature Summary
- Operates within the 1616 to 1626.5 MHz frequency band for Iridium satellite communications
- Features magnetic mounting design for easy and secure installation
- Supports Right-Hand Circular Polarization (RHCP) for optimal signal integrity
- Utilizes an SMA connector for standard RF interface compatibility
Antennas RF Applications
- Iridium satellite communication systems
- Internet of Things (IoT) devices requiring satellite connectivity
- Handheld satellite communication equipment
- Outdoor IoT sensor networks
Antennas RF Procurement Notes
Verify the specific part number suffix against official Abracon documentation to ensure correct configuration. Confirm that the SMA connector type matches your system requirements. Check for RoHS compliance status if environmental regulations apply to your deployment. Ensure the magnetic mounting surface is suitable for the intended operational environment to maintain antenna stability and performance.
Antennas RF Selection Notes
Select this component when designing systems requiring dedicated Iridium satellite connectivity in the L-band spectrum. Consider the external form factor and magnetic mounting options for ease of integration into handheld or portable devices. Evaluate the RHCP polarization requirements against your receiver specifications to ensure compatibility. Verify that the SMA interface aligns with existing cable assemblies and connector standards in your design.
Antennas RF Part Context
This antenna belongs to Abracon's portfolio of external RF antennas tailored for satellite and IoT applications. It complements their broader range of timing and sensing solutions by providing essential connectivity components for global satellite networks. The product line emphasizes reliability and ease of installation for diverse electronic designs.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Abracon directly for potential alternatives or updated models within their external antenna series.
