AEARBD048014-SG3

Antennas RF Overview

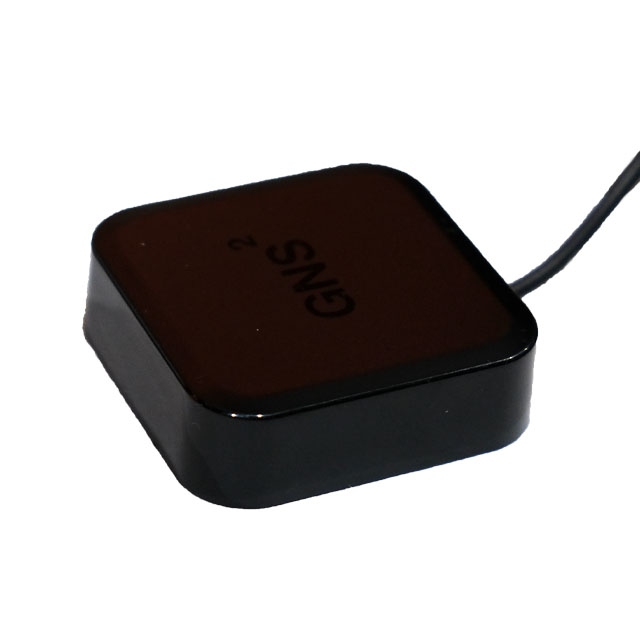

The AEARBD048014-SG3 is an active GNSS L1 magnetic-mount puck antenna manufactured by Abracon LLC. It operates within a frequency range of 1.559 GHz to 1.610 GHz, supporting Beidou, Galileo, GLONASS, and GPS systems. The unit features a 5-meter cable length terminated with an SMA male connector and maintains a 50 Ohm impedance. Key electrical specifications include a VSWR of 2 and return loss performance metrics. The antenna provides gain values ranging from 4.27 dBi to 5.78 dBi across its operational bandwidth.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including Beidou, Galileo, GLONASS, and GPS
• Features a magnetic mount design for secure attachment to metallic surfaces
• Includes an integrated active element to enhance signal reception capabilities

Antennas RF Applications

• Vehicle tracking and telematics systems
• Maritime navigation equipment
• Aviation positioning devices
• Outdoor mobile data collection units

Antennas RF Procurement Notes

Verify the specific revision of the datasheet to confirm current IP ratings and connector types. Ensure compatibility with existing SMA male interfaces on receiving equipment. Check regional availability as distribution status may vary. Confirm that the 5-meter cable length meets installation requirements without excessive signal loss.

Antennas RF Selection Notes

Select this model when multi-constellation support is required for L1 band applications. The magnetic mounting style simplifies installation on metal chassis or vehicle roofs. Consider the active nature of the antenna for low-signal environments where amplification is necessary. Verify power supply requirements for the active component if integrating into custom designs.

Antennas RF Part Context

This component belongs to Abracon's external RF antenna portfolio, specifically designed for GNSS applications. It complements other passive and active antennas in their catalog, offering specialized solutions for mobile and vehicular platforms requiring reliable satellite connectivity.

Antennas RF Replacement Considerations

Consult official Abracon documentation for direct cross-reference part numbers. Ensure any substitute matches the SMA male interface and 50 Ohm impedance. Verify that alternative models support the same GNSS constellations and frequency ranges.
