AEBC1101XS-S

Antennas RF Overview

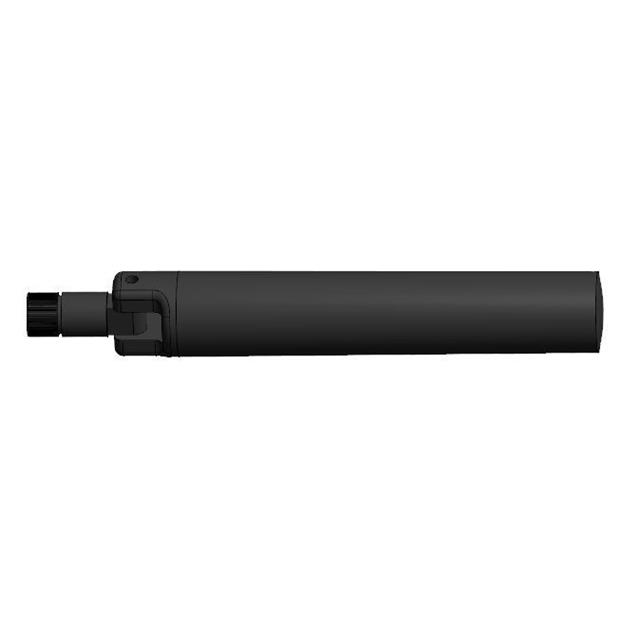

The AEBC1101XS-S is a whip antenna manufactured by Abracon LLC, designed for RF applications spanning 600 MHz to 6 GHz. It supports 5G NR, CBRS, and private LTE bands. The component features an SMA male connector mount and offers linear polarization with an omnidirectional radiation pattern in the azimuth plane. Key electrical parameters include a gain of 3 dBi, an impedance of 50 Ohms, and a physical length of 115 mm.

Antennas RF Feature Summary

• Supports 5G NR, CBRS, and private LTE frequency bands
• Provides optimal efficiency with linear polarization
• Features an omnidirectional radiation pattern in the azimuth plane

Antennas RF Applications

• 5G New Radio (NR) base station deployments
• Citizens Broadband Radio Service (CBRS) infrastructure
• Private Long Term Evolution (LTE) network installations

Antennas RF Procurement Notes

Verify the specific ordering suffix against official Abracon documentation to ensure compatibility with required mounting hardware and connector types. Confirm that the SMA male connector specification matches the receiving equipment interface. Cross-reference the frequency range requirements with the 600 MHz to 6 GHz operational bandwidth to validate suitability for the intended wireless standard deployment.

Antennas RF Selection Notes

Select this model when omnidirectional coverage is required for cellular and broadband radio services. The whip form factor simplifies installation compared to directional panel antennas, reducing alignment effort during deployment. Ensure the application environment accommodates the 115 mm physical length and that the operating temperature range meets site conditions without requiring additional environmental shielding.

Antennas RF Part Context

This component belongs to Abracon's RF antenna portfolio, specifically targeting cellular and broadband communication sectors. It serves as a passive radiating element for base stations and access points. The design focuses on providing reliable signal transmission and reception across multiple modern wireless standards within a compact mechanical footprint suitable for pole or mast mounting.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify mechanical dimensions and connector polarity before considering alternative models from other manufacturers to ensure direct interchangeability without redesigning the mounting structure.
