AECB1102XS-3000S

Antennas RF Overview

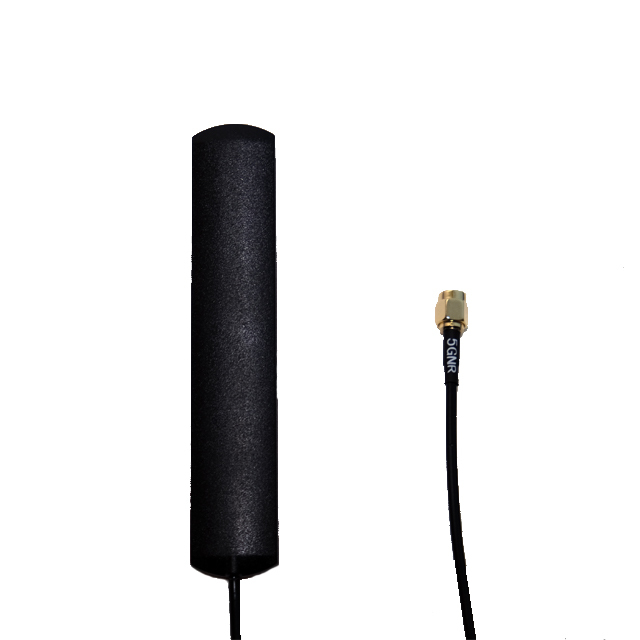

The AECB1102XS-3000S is an active cellular blade antenna manufactured by Abracon LLC, designed for multi-band wireless communication applications. It operates within a frequency range of 600MHz to 6GHz, covering UHF bands including 5G NR and CBRS standards. The component features a center frequency of 3.3GHz with a peak gain of 2dBi and an input impedance of 50 ohms. It utilizes an SMA male connector and includes a 3-meter LMR-100 cable. The unit supports a power rating of 10W and maintains a VSWR of 3.5. Physical dimensions are 115.6 x 21.7 x 5.8 mm, with adhesive mounting for secure installation.

Antennas RF Feature Summary

• Multi-band support for 5G NR, CBRS, and LTE cellular networks
• Adhesive mounting design for permanent external installation
• Integrated 3-meter LMR-100 cable with SMA male connector
• IP66 rated enclosure for weather-resistant outdoor performance

Antennas RF Applications

• 5G New Radio (NR) base station deployments
• CBRS private network infrastructure
• LTE cellular backhaul connectivity
• Outdoor wireless broadband access points

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required cable length and connector type configuration. Confirm that the adhesive backing material is compatible with the intended mounting surface for long-term durability. Ensure the SMA male interface aligns with the receiving equipment's RF port specifications before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when multi-band cellular coverage across 600MHz to 6GHz is required. The integrated cable simplifies installation compared to discrete antenna components. Consider the IP66 rating for environments exposed to moisture or dust. Verify that the 2dBi gain meets the link budget requirements for the specific deployment scenario.

Antennas RF Part Context

This component belongs to the AECB series of external blade antennas from Abracon LLC. The series focuses on cellular communication standards, providing robust solutions for modern wireless infrastructure. The AECB1102XS variant specifically addresses high-frequency 5G and CBRS applications with integrated cabling.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Abracon technical support for direct replacements or cross-reference similar multi-band blade antennas with matching impedance and connector types.
