AECR1808A12A-4000S

Antennas RF Overview

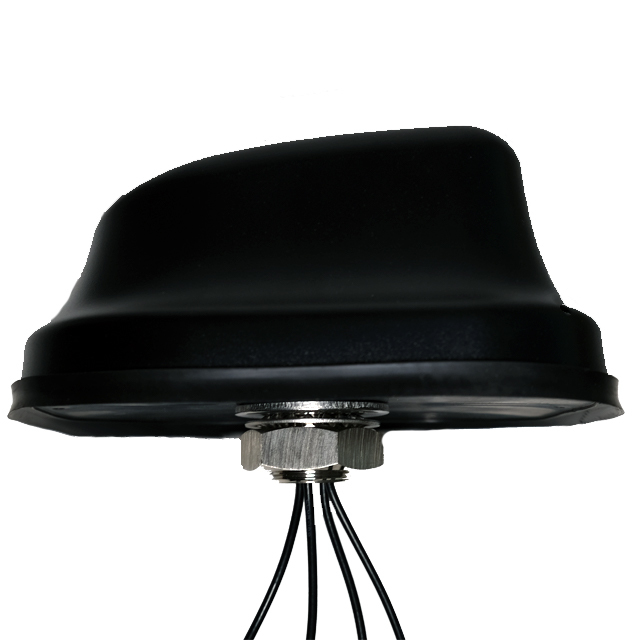

The AECR1808A12A-4000S is an external multi-band antenna manufactured by Abracon LLC. It integrates multiple radio frequency systems into a single unit, specifically combining MIMO 2x5G NR, MIMO 2x Wi-Fi, and GNSS capabilities. This design supports complex connectivity requirements for modern electronic devices requiring simultaneous operation across cellular, wireless local area network, and global navigation satellite systems.

Antennas RF Feature Summary

• Integrates MIMO 2x5G NR, MIMO 2x Wi-Fi, and GNSS functionalities
• Designed as an external antenna solution
• Supports combined multi-standard communication protocols

Antennas RF Applications

• 5G New Radio (NR) mobile devices
• Wi-Fi enabled consumer electronics
• Global Navigation Satellite System (GNSS) receivers

Antennas RF Procurement Notes

Verify the specific mechanical dimensions and mounting interface requirements against the target device enclosure before procurement. Confirm that the integrated RF connectors match the system board layout. Ensure the supplier provides the official Abracon datasheet to validate performance specifications for the intended operating bands.

Antennas RF Selection Notes

Select this component when a unified external antenna solution is required for devices supporting 5G NR, Wi-Fi, and GNSS simultaneously. The integrated MIMO architecture reduces space consumption compared to separate antennas. Evaluate the physical form factor to ensure compatibility with the host product's housing constraints.

Antennas RF Part Context

Abracon LLC specializes in frequency control, timing, RF, and antenna products. The AECR1808A12A-4000S belongs to their external antenna portfolio, designed to meet the increasing demand for compact, multi-functional RF solutions in advanced telecommunications hardware.
