AECR1808A12S-3000S

Antennas RF Overview

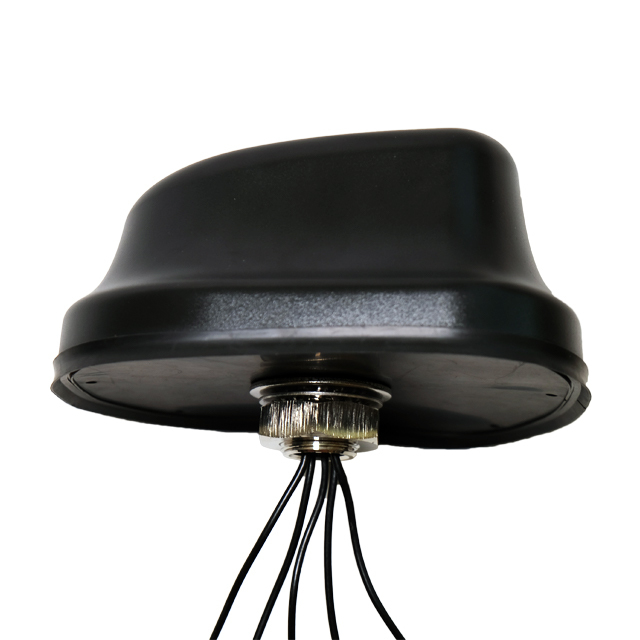

The AECR1808A12S-3000S is a multi-protocol external antenna module by Abracon LLC, designed for outdoor deployment with an IP67 rating. It integrates five distinct radio functions: two 5G cellular, two Wi-Fi, and one GNSS (GPS, GLONASS, Beidou) receiver. The unit features a sharkfin mechanical form factor and includes four SMA male connectors attached to three-meter LMR-100 cables. Operating frequencies span from 600 MHz to 6 GHz, supporting protocols including LTE, Cat-M, NB-IoT, CBRS, and IoT sub-GHz bands. Gain specifications are rated at 4 dBi for cellular/Wi-Fi and 3 dBi for GNSS.

Antennas RF Feature Summary

• Integrates five independent radio interfaces within a single compact housing
• Engineered for harsh outdoor environments with full weather sealing
• Supports simultaneous operation of cellular, wireless LAN, and satellite navigation systems

Antennas RF Applications

• M2M connectivity modules requiring combined telemetry and positioning
• Smart city infrastructure nodes needing robust environmental protection
• Transportation tracking devices utilizing multiple communication standards

Antennas RF Procurement Notes

Verify the specific protocol configuration required for your application, as this model combines cellular, Wi-Fi, and GNSS functions. Confirm that the SMA male connector type matches your equipment interface. Ensure the mounting surface supports the screw-mount installation method specified for the sharkfin design. Check cable length requirements against the fixed three-meter LMR-100 provision.

Antennas RF Selection Notes

Select this component when a unified solution for cellular data, local wireless networking, and global positioning is necessary. The integrated design reduces assembly complexity compared to discrete antennas. Consider the IP67 rating for applications exposed to dust and water. Verify frequency band compatibility with local network operators and regulatory requirements for GNSS constellations.

Antennas RF Part Context

This part belongs to Abracon's outdoor antenna portfolio, specifically the AECR series. It represents a convergence of RF technologies into a single mechanical unit. The sharkfin style is common for vehicle or pole-mounted installations where aerodynamic profile and stability are prioritized over low-profile aesthetics.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific five-in-one configuration. Alternative solutions may require combining separate cellular, Wi-Fi, and GNSS antennas, which increases footprint and installation complexity.
