AECS1806C03ZS-3000S

Antennas RF Overview

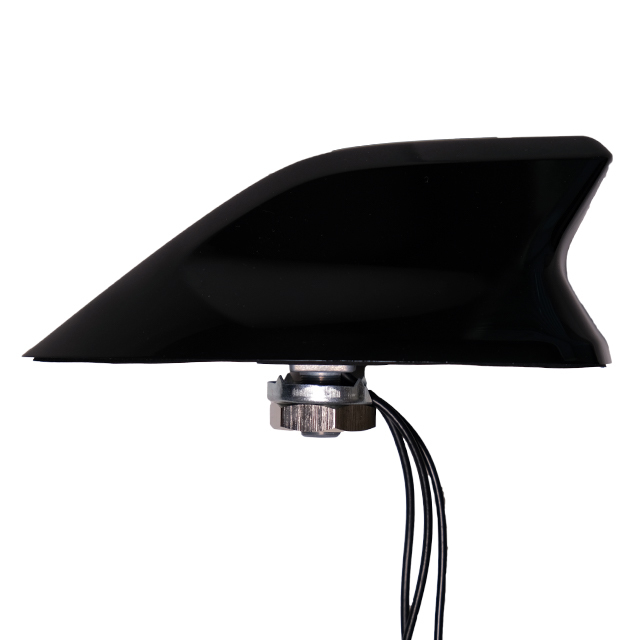

The AECS1806C03ZS-3000S is an active automotive sharkfin antenna supporting LTE, Wi-Fi, and GNSS protocols. It operates from a minimum frequency of 698 MHz to a maximum of 2.483 GHz. The unit features screw-mount installation with a 3-meter UL-94 rated cable and SMA male connector. It holds IP67 ingress protection ratings for outdoor durability.

Antennas RF Feature Summary

• Integrates cellular, Wi-Fi, and global navigation satellite system reception in a single sharkfin housing
• Designed for active signal amplification within the specified frequency range
• Constructed with weather-resistant materials suitable for exterior vehicle mounting

Antennas RF Applications

• Automotive telematics systems requiring multi-protocol connectivity
• Vehicle infotainment networks utilizing LTE and Wi-Fi bands
• Fleet management units needing precise GNSS positioning data

Antennas RF Procurement Notes

Verify the specific connector configuration against your harness requirements, as sources indicate variations between SMA and FAKRA interfaces for this series. Confirm that the active component voltage matches your vehicle's power supply specifications before integration. Ensure the 3-meter cable length accommodates your routing path without tension or interference.

Antennas RF Selection Notes

Select this model when a compact, integrated solution for cellular, wireless local area network, and satellite navigation is required. The screw-mount design simplifies installation compared to adhesive alternatives. Consider the active nature of the antenna for applications demanding enhanced signal sensitivity in challenging RF environments.

Antennas RF Part Context

This component belongs to Abracon's AEC series of multiprotocol antennas designed specifically for automotive OEM applications. The sharkfin form factor allows for aerodynamic integration on vehicle roofs while consolidating multiple radio functions into a single physical unit.

Antennas RF Replacement Considerations

Cross-reference with other models in the AEC series for mechanical compatibility. Verify that substitute parts support the same combination of LTE, Wi-Fi, and GNSS bands if all three protocols are critical to the system design.
