AECW0401G4ZS-3000S

Antennas RF Overview

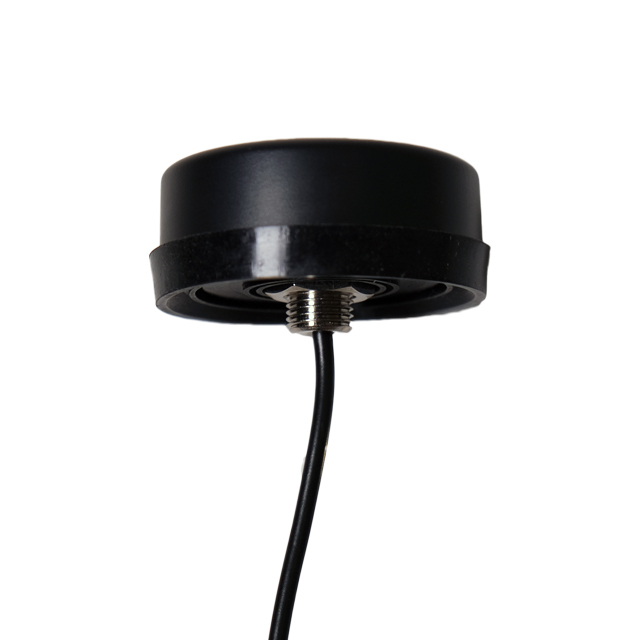

The AECW0401G4ZS-3000S is an automotive-grade active external GNSS puck antenna manufactured by Abracon LLC. It supports Beidou, Galileo, GLONASS, and GPS systems within a frequency range of 1.561GHz to 1.602GHz, with a center frequency of 1.5815GHz. The component features an SMA male connector for panel mounting. Designed for M2M and vehicle tracking applications, it provides reliable geolocation capabilities in demanding environments.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including Beidou, Galileo, GLONASS, and GPS
• Automotive-grade construction suitable for harsh environmental conditions
• Active design with integrated electronics for enhanced signal reception

Antennas RF Applications

• Vehicle tracking systems
• Geolocation tracking devices
• M2M communication modules
• Automotive telematics units

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required configuration. Confirm that the SMA male connector type aligns with system interface requirements. Ensure the automotive grade specification meets project reliability standards. Check datasheet for detailed mechanical dimensions and mounting instructions before integration.

Antennas RF Selection Notes

Select this model when multi-constellation GNSS support is required for automotive or M2M applications. The active puck design offers superior performance compared to passive alternatives. Verify compatibility with existing SMA connectors. Consider the operating frequency range against local satellite signal availability.

Antennas RF Part Context

This part belongs to Abracon's automotive-grade GNSS antenna portfolio. It complements other models like AECA0401G4ZS-3000S and AECP0401G4ZS-3000S within the same product family. These components are designed for high-reliability positioning applications in connected vehicles and industrial IoT devices.

Antennas RF Replacement Considerations

Direct substitutes include AECA0401G4ZS-3000S and AECP0401G4ZS-3000S from the same manufacturer family. Verify connector orientation and mounting style compatibility before substitution. Cross-reference electrical specifications to ensure equivalent performance in the target application.
