AECW0801C09S-3000S

Antennas RF Overview

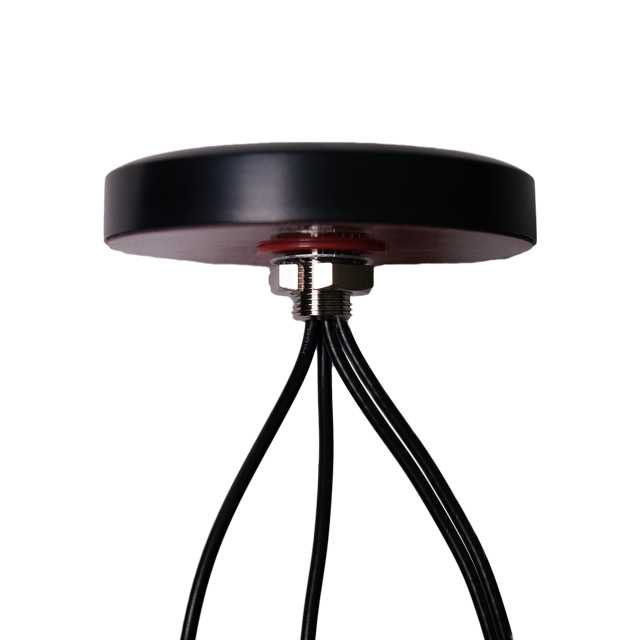

The AECW0801C09S-3000S is a multiprotocol external antenna module manufactured by Abracon LLC. It integrates support for LTE, Wi-Fi, and multiple Global Navigation Satellite Systems including Beidou, Galileo, GLONASS, GNSS, and GPS. The unit features a screw-mount puck design with an IP67 rating for environmental protection. It includes four SMA male connectors and utilizes 3-meter LMR-100 coaxial cables to facilitate connectivity across cellular, wireless local area network, and positioning frequency bands.

Antennas RF Feature Summary

• Integrates LTE, Wi-Fi, and multi-constellation GNSS capabilities into a single compact module
• Provides IP67 rated weatherproofing for reliable outdoor deployment
• Features a screw-mount installation style for secure mechanical attachment
• Includes four SMA male connectors with pre-attached 3-meter LMR-100 cables

Antennas RF Applications

• M2M communication systems requiring combined data and positioning
• Smart city infrastructure nodes needing integrated telemetry
• Transportation tracking devices for fleet management
• Geolocation hardware for asset monitoring

Antennas RF Procurement Notes

Verify the specific connector configuration and cable length requirements against system integration needs before ordering. Confirm that the screw-mount footprint aligns with the intended installation surface. Ensure the operating temperature range meets the environmental conditions of the deployment site. Check current availability status as distribution may vary by region. Validate compliance with regional radio frequency regulations for all supported bands.

Antennas RF Selection Notes

Select this model when a unified solution for cellular data, Wi-Fi connectivity, and satellite navigation is required. It is suitable for applications where space constraints prevent separate antenna installations. Consider the IP67 rating for harsh outdoor environments. Evaluate the four-port requirement against available RF interfaces on the host device. This part serves as a direct alternative to other multiprotocol antennas within the same product family.

Antennas RF Part Context

This component belongs to the AEC series of multiprotocol antennas from Abracon LLC. It is designed to consolidate multiple RF functions into a single physical unit. The series typically targets M2M and IoT applications requiring robust connectivity. Similar models in the lineup may offer different connector counts or cable lengths while maintaining the same core protocol support and mounting style.

Antennas RF Replacement Considerations

The AECW0801C03S-3000S is a related variant within the same product line. It shares similar functional capabilities but differs in cable specifications. Verify compatibility regarding connector types and physical dimensions when substituting. Ensure the replacement maintains the required IP67 rating and mounting method for the application.
