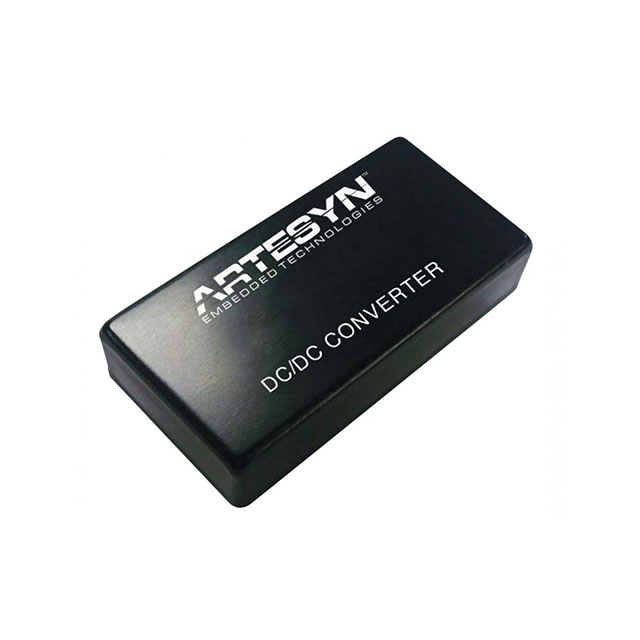

AEE01BB18-LHS

AEE01BB18-LHS is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER +/-12V 40W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AEE01BB18-LHS

• Description：DC DC CONVERTER +/-12V 40W
• Series：AEE (40W)
• Mfr：ARTESYN / Advanced Energy
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.67A, 1.67A
• Power (Watts)：40 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 52°C
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.22" W x 0.68" H (50.8mm x 31.0mm x 17.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AEE01BB18-LHS
