AEMF1005X-H

$7.00

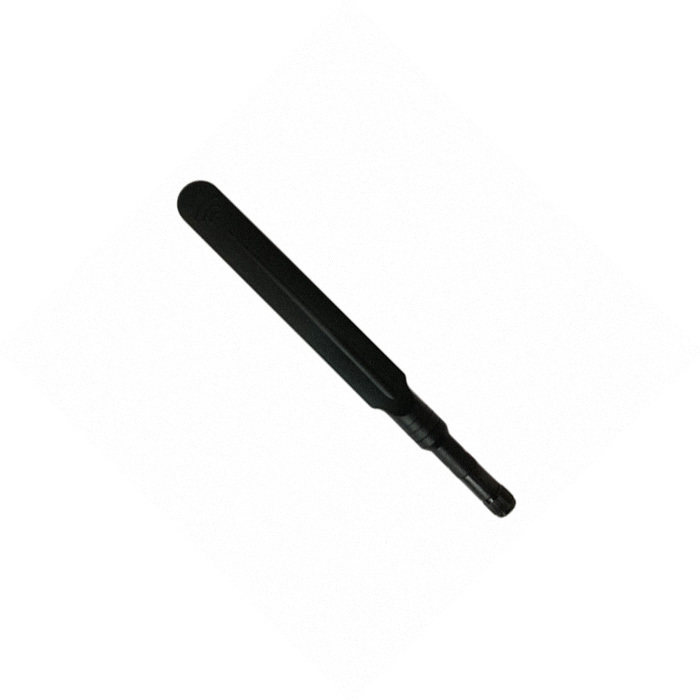

Description：LTE 5G WIDEBAND EXTERNAL RA WHIP
Series：AEMF
Mfr：Abracon LLC
Package：Bag

SKU:b1ea46336e90 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AEMF1005X-H is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is LTE 5G WIDEBAND EXTERNAL RA WHIP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AEMF1005X-H

Description：LTE 5G WIDEBAND EXTERNAL RA WHIP
Series：AEMF
Mfr：Abracon LLC
Package：Bag
RF Family/Standard：Cellular/LTE
Frequency Group：Wide Band
Frequency (Center/Band)：788.5MHz, 2.05GHz, 3.85GHz, 5.2GHz
Frequency Range：617MHz ~ 6GHz
Antenna Type：Whip, Tilt
Number of Bands：4
VSWR：3
Return Loss：-
Gain：0.1dBi, 3.6dBi, 5.1dBi, 4.8dBi
Features：Swivel Connetor
Termination：RP-SMA Male, SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.811" (173.00mm)
Applications：5G, LTE-M, Cat M, Cat M1, NB-IoT, IOT, CBRS
Power - Max：5 W

Antennas RF datasheet and documents for AEMF1005X-H

AEMF1005X-H

Antennas RF Overview

The AEMF1005X-H is an LTE and 5G wideband external whip antenna manufactured by Abracon LLC. It supports a frequency range from 617 MHz to 6000 MHz, covering 5G, CBRS, LTE-M, Cat M1, NB-IoT, and IoT applications. The device features a peak gain of up to 5.1 dBi and high efficiency reaching up to 70%. It utilizes an SMA connector for mounting and offers a swivel design compatible with straight, right-angle, and 45-degree orientations.

Antennas RF Feature Summary

Supports wideband frequencies from 617 MHz to 6000 MHz
Features high efficiency up to 70% and peak gain up to 5.1 dBi
Includes swivel connector design for flexible orientation

Antennas RF Applications

5G communication systems
CBRS networks
LTE-M and Cat M1 deployments
NB-IoT and general IoT devices

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions. Ensure the SMA connector type matches the host equipment interface requirements. Confirm regulatory compliance certifications for the target deployment region before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when a wideband external solution is required for multi-standard wireless connectivity. The swivel design allows for optimized signal alignment in constrained spaces. Consider the physical size and mounting constraints relative to the host device enclosure during the integration phase.

Antennas RF Part Context

This model belongs to Abracon's portfolio of RF antennas designed for modern cellular and IoT standards. It addresses the need for versatile connectivity solutions that support both legacy LTE and emerging 5G technologies within a single hardware platform.
