AEMF3108A-F

Antennas RF Overview

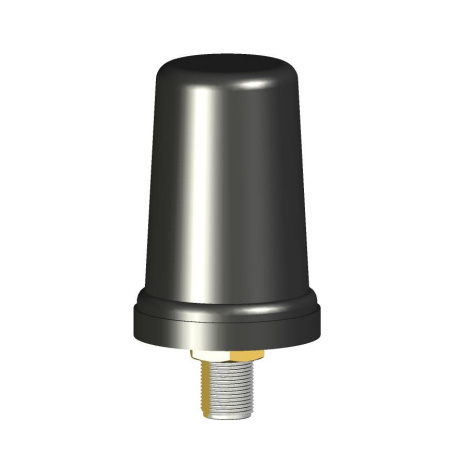

The Abracon AEMF3108A-F is an external dome RF antenna designed for Wi-Fi 6E, Bluetooth, and Zigbee applications. It supports three frequency bands: 2.4GHz–2.5GHz (3dBi gain), 5.15GHz–5.85GHz (6dBi gain), and 5.93GHz–7.13GHz (5dBi gain). The unit features an N-type female connector with a 200mm cable and panel mount installation. Dimensions are 80mm height by 52.7mm diameter, with IP67 rating for rugged outdoor use.

Antennas RF Feature Summary

• IP67 rated rugged design suitable for outdoor and industrial environments
• Supports multiple wireless standards including Wi-Fi 6E, Bluetooth, and Zigbee
• High efficiency up to 68% with peak gain of 6 dBi in the 5GHz band

Antennas RF Applications

• Wi-Fi coverage in rugged industrial settings
• Outdoor wireless network infrastructure
• Bluetooth and Zigbee connectivity solutions

Antennas RF Procurement Notes

Verify the specific part number suffix against the manufacturer's current datasheet to ensure compatibility with required frequency bands and connector types. Confirm that the N-type female bulkhead interface matches the receiving equipment. Check RoHS compliance status if environmental regulations apply to the deployment location. Ensure the 200mm cable length meets spatial requirements for the intended panel mounting position.

Antennas RF Selection Notes

Select this model when high ingress protection is required for external installations. The multi-band capability supports diverse protocols without additional hardware. Consider the physical dimensions and screw-mount style for enclosure integration. Verify that the gain specifications align with the link budget calculations for the specific application range and interference environment.

Antennas RF Part Context

This component belongs to the AEMF series of external dome antennas from Abracon LLC. It is specifically engineered for Wi-Fi 6E and related wireless technologies. The product line emphasizes durability and performance in challenging environments, distinguishing it from standard indoor antennas through its sealed construction and robust mounting mechanism.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Users requiring alternative models should consult the manufacturer's official catalog for comparable IP67-rated dome antennas with matching N-type connectors and frequency coverage.
