AEMF3108X-F

Antennas RF Overview

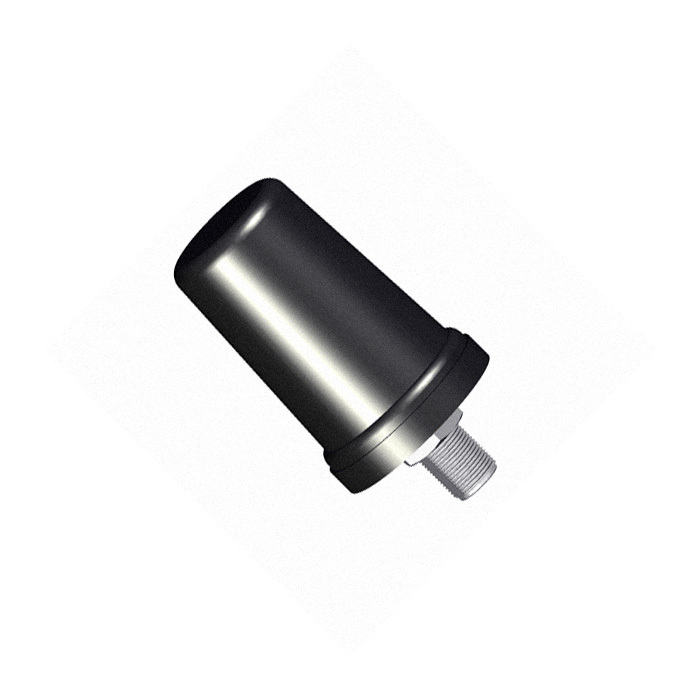

The AEMF3108X-F is a wideband external dome antenna manufactured by Abracon LLC, designed for LTE and 5G applications. It operates within a frequency range of 617MHz to 6GHz, supporting bands such as CBRS, LTE-M, Cat M, Cat M1, NB-IoT, and IoT. The antenna features an N-type female bulkhead connector with screw mount installation and offers a high peak gain of up to 6.9dBi at 5W input power. It achieves an efficiency of up to 89% and maintains a VSWR of 2. The unit is rated IP67 for environmental protection and complies with RoHS standards.

Antennas RF Feature Summary

• High peak gain of up to 6.9dBi at 5W input power
• High radiation efficiency reaching up to 89%
• IP67 rated weatherproof enclosure for outdoor durability
• Wideband coverage supporting multiple cellular and IoT protocols

Antennas RF Applications

• 5G network infrastructure deployment
• CBRS (Citizens Broadband Radio Service) base stations
• LTE-M and NB-IoT connectivity solutions
• Industrial IoT gateways requiring robust signal reception

Antennas RF Procurement Notes

Verify the specific frequency band requirements against the 617MHz to 6GHz operational range before procurement. Confirm that the N-type female bulkhead connector interface matches the existing cabling infrastructure. Ensure the mounting surface supports the screw-mount mechanism and meets the structural requirements for the antenna's weight and wind load specifications. Check for RoHS compliance documentation if required by local regulations.

Antennas RF Selection Notes

Select this model when a wideband solution covering both sub-6GHz cellular frequencies and IoT bands is necessary. The IP67 rating makes it suitable for harsh outdoor environments where water and dust resistance are critical. Consider the 6.9dBi peak gain for applications requiring extended range or improved signal penetration compared to standard omnidirectional antennas. Ensure the host device supports the N-type connector type without requiring additional adapters.

Antennas RF Part Context

This component belongs to Abracon’s AEMF series of RF antennas, specifically engineered for wireless communication systems. The AEMF3108X-F variant focuses on wideband performance for modern mobile networks. It complements other models in the lineup by offering specialized support for emerging technologies like 5G and CBRS while maintaining compatibility with legacy LTE standards through its broad frequency coverage.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers: None identified.
