AEMIF-0603-401M-16-T

Overview

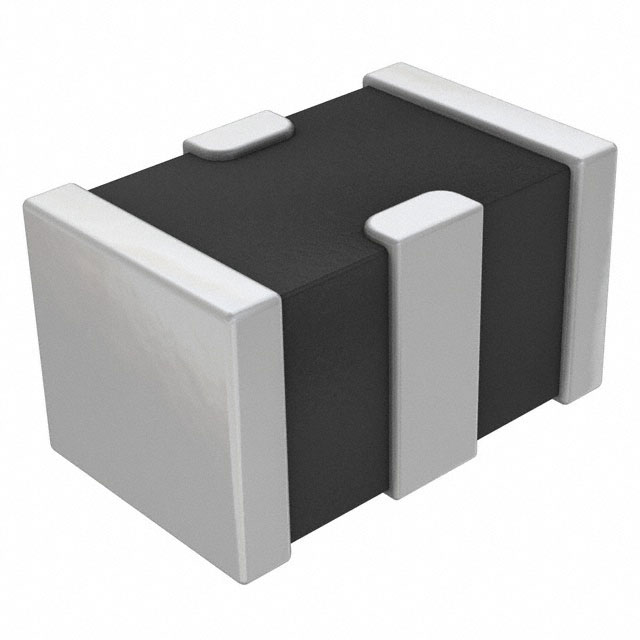

The AEMIF-0603-401M-16-T is an SMD EMI/RFI filter manufactured by Abracon LLC. It features a PI-filter topology with a resistance of 0.8 ohms and operates up to 400 MHz. The component utilizes a 0603 (1608 metric) surface-mount package, ensuring compatibility with standard PCB footprints for compact electronic designs.

Feature Summary

• PI-filter topology for effective noise suppression
• Compact 0603 surface-mount footprint
• Designed for high-frequency signal line protection

Applications

• Noise removal from signal lines in digital cameras
• Suppression of noise generated by high-speed digital circuits in computers
• EMI filtering in game consoles and LED TVs

Procurement Notes

Verify the specific datasheet version for the AEMIF-0603-401M-16-T to confirm RoHS compliance status and exact electrical tolerances. Ensure the ordering suffix matches the required packaging format. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and avoid counterfeit components during procurement.

Selection Notes

Select this component when space-constrained designs require effective EMI suppression on high-speed digital interfaces. The 0603 package allows for dense PCB layouts. Consider the 0.8-ohm resistance value to ensure minimal signal attenuation while maintaining necessary noise filtering capabilities for sensitive digital signals in consumer electronics.

Part Context

This component belongs to Abracon's EMI/RFI filter series, designed for commercial and industrial applications. It addresses the growing need for noise control in portable devices and high-speed data transmission lines. The product line emphasizes reliability and performance in compact form factors suitable for modern electronics manufacturing.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical characteristics before considering alternative manufacturers.
