AEMIF-0805-151M-16-T

Overview

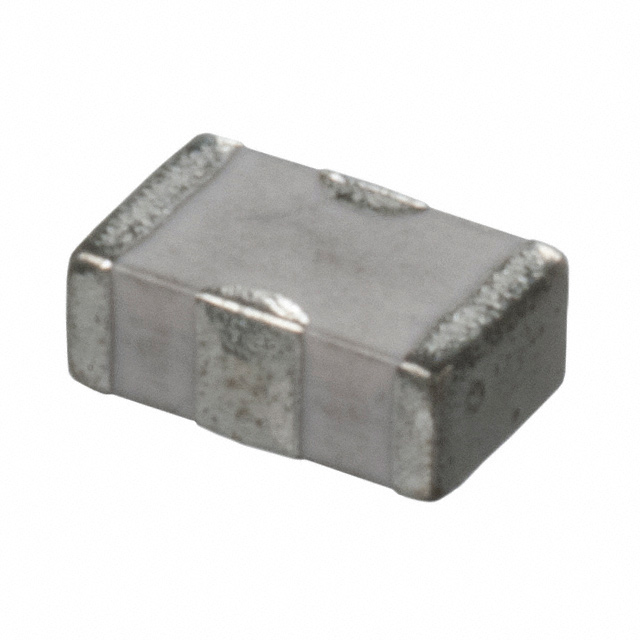

The AEMIF-0805-151M-16-T is a second-order low-pass RC EMI/RFI filter from Abracon LLC, housed in an 0805 surface-mount package. It features a single channel with a resistance of 1 Ohm and supports a maximum DC current rating of 200 mA. The component operates within a temperature range of -40°C to +85°C and is supplied in tape and reel packaging.

Feature Summary

• Provides second-order low-pass filtering for effective EMI and RFI suppression
• Integrates resistor and capacitor elements into a compact single-channel design
• Supports standard surface-mount assembly processes

Applications

• General electronic equipment noise suppression
• Industrial control system signal conditioning
• Consumer device power line filtering

Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to confirm electrical characteristics and physical dimensions. Ensure that the selected component meets the required thermal operating range and current handling capabilities for the intended circuit application before finalizing procurement.

Selection Notes

Select this component when a compact, integrated solution for suppressing electromagnetic interference is required in space-constrained designs. Consider the 1 Ohm resistance value and 200 mA current limit to ensure compatibility with the target circuit's impedance and power requirements without causing excessive voltage drop or thermal issues.

Part Context

This component belongs to Abracon’s family of passive EMI/RFI filters designed for commercial and industrial applications. It utilizes a monolithic construction to provide reliable noise attenuation in a small footprint, serving as a critical element for maintaining signal integrity and regulatory compliance in modern electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available.
