AEP-308SI

Description：EP5 POWER TRANSFORMER
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:20f58f75a4a6 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：EP5 POWER TRANSFORMER
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：-
Inductance：2.4µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：01:01.3
Mounting Type：Surface Mount
Size / Dimension：0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max)：0.425" (10.80mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

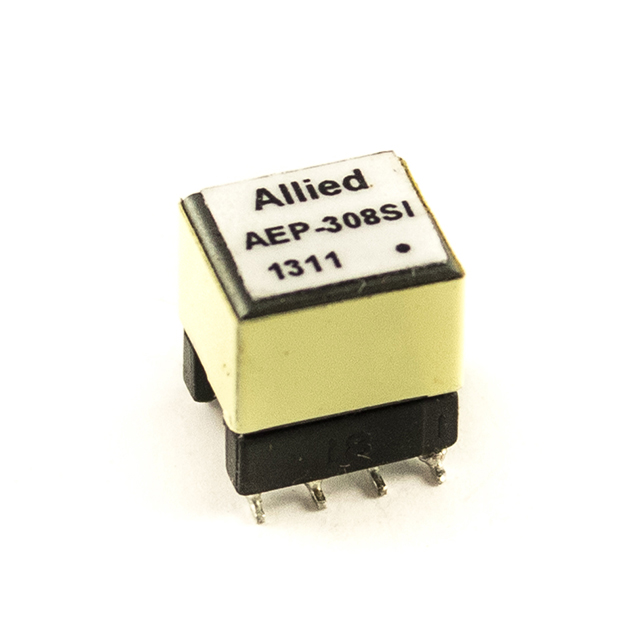

AEP-308SI

Overview

The AEP-308SI is a surface mount pulse transformer manufactured by Allied Components International. It utilizes an EP7 SMD package with eight pins. The component features a turns ratio of 1:1.27 and offers an inductance of 2.4µH. Additionally, it provides an open circuit inductance (OCL) of 400µH. This device is designed for applications requiring compact magnetic isolation and signal transmission in surface mount technology environments.

Feature Summary

Surface mount construction utilizing EP7 package
Eight-pin configuration for integrated circuit compatibility
Pulse transformer functionality for signal isolation

Applications

Surface mount technology circuits
Pulse signal transmission systems
Isolated power supply interfaces

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters such as inductance and turns ratio. Ensure the EP7 package dimensions align with PCB footprint requirements. Confirm that the 1:1.27 ratio meets system design specifications before procurement.

Selection Notes

Select this component when a surface mount pulse transformer with an EP7 package is required. Consider the 2.4µH inductance and 400µH OCL values for circuit matching. Verify the 1:1.27 turns ratio against application needs. Ensure compatibility with automated surface mount assembly processes.

Part Context

Allied Components International specializes in magnetic components including inductors and transformers. The AEP-308SI belongs to their surface mount product line. It serves as a specialized solution for compact electronic designs requiring reliable pulse transformation and isolation within limited board space constraints.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference package type, pin count, and electrical specifications. Ensure any substitute maintains the EP7 form factor and compatible inductance values.
