AEP5-3852

Overview

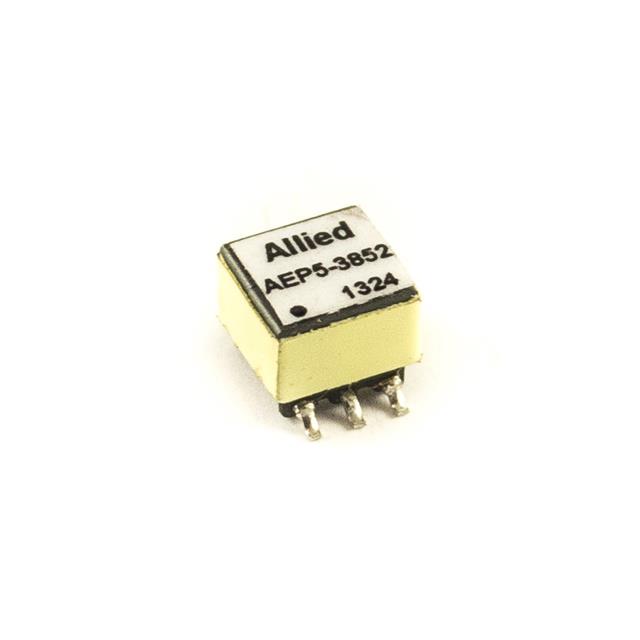

The AEP5-3852 is a surface-mount transformer manufactured by Allied Components International. It features a 6-pin SMD package and operates within an ambient temperature range of -40°C to +125°C. The component has a minimum inductance of 296µH and a turns ratio of 1:1. It complies with RoHS standards and is classified under ECCN EAR99.

Feature Summary

• Surface-mount design for automated assembly
• Wide operating temperature capability
• RoHS compliant construction

Applications

• Power supply circuit isolation
• Signal coupling applications
• Industrial electronic modules

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm pinout configuration and electrical characteristics prior to integration. Ensure that the selected component meets all required thermal and regulatory compliance standards for the target application environment.

Selection Notes

Select this component based on its 6-pin SMD form factor and 1:1 turns ratio requirements. Consider the -40°C to +125°C operating range for environmental suitability. Confirm that the 296µH minimum inductance aligns with the circuit's magnetic performance needs.

Part Context

Allied Components International specializes in custom and standard magnetic components, including transformers and inductors. The AEP5-3852 belongs to their EP5 series of surface-mount transformers, designed for compact electronic assemblies requiring reliable magnetic coupling.

FAQ

What is the maximum operating temperature?

The maximum operating temperature is +125°C.

Is the component lead-free?

Yes, the component is lead-free and RoHS compliant.
