AETC2303XS-SS

Antennas RF Overview

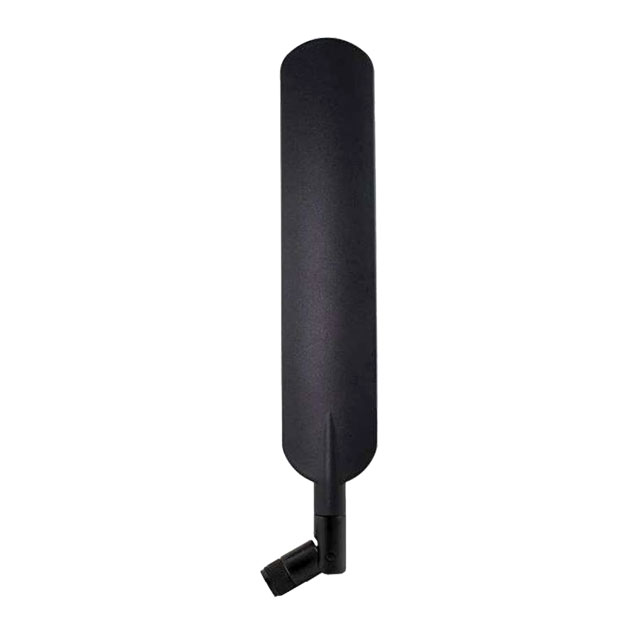

The AETC2303XS-SS is a high-efficiency external whip antenna designed for cellular and ultra-wideband applications. It operates within a frequency range of 7.125 to 5.15 GHz, supporting technologies including 5G, UWB, LTE, 4G, 3G, and 2G. The component features a gain of 3 dBi and a characteristic impedance of 50 ohms. It utilizes an SMA male connector for mounting, providing a robust interface for short-range high-precision data transmission in IoT and M2M environments.

Antennas RF Feature Summary

• High-efficiency external whip design optimized for cellular and UWB signals
• Broadband operation covering 2G through 5G and UWB standards
• SMA male connector mount for secure installation

Antennas RF Applications

• 5G cellular infrastructure and devices
• Ultra-Wideband (UWB) positioning systems
• IoT and M2M communication modules
• LTE and legacy cellular networks

Antennas RF Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to procurement. Confirm that the SMA male connector orientation matches the host device interface requirements. Ensure environmental classifications align with the intended deployment conditions. Cross-reference the part number with official Abracon documentation to confirm current manufacturing status and availability constraints.

Antennas RF Selection Notes

Select this antenna for applications requiring broadband support across multiple cellular generations and UWB frequencies. The 3 dBi gain and 50 ohm impedance are standard for efficient RF signal transfer. Consider the external whip form factor for installations where space allows for vertical mounting to maximize radiation pattern effectiveness compared to chip antennas.

Antennas RF Part Context

This component belongs to Abracon's portfolio of passive RF components, specifically targeting high-performance wireless connectivity. It complements other UWB and cellular solutions by offering a dedicated external mounting option. The product line emphasizes reliability for industrial and consumer electronics requiring stable short-range data transmission.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing RF front-end designs before considering alternative models from the same manufacturer or different suppliers.
