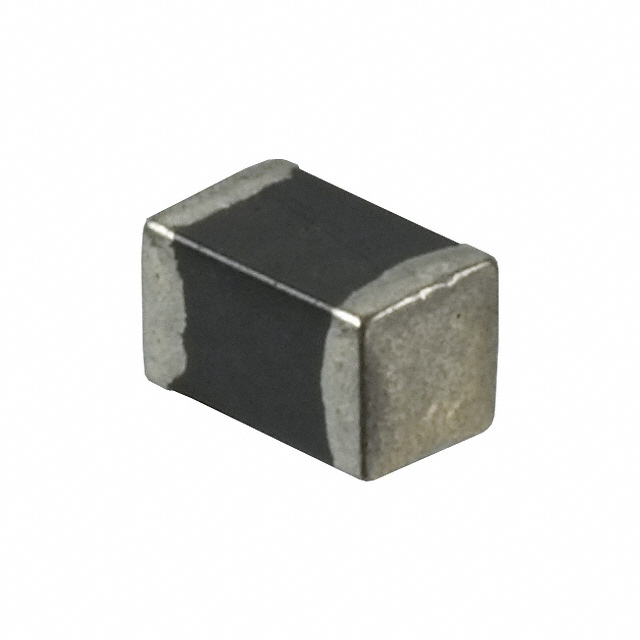

AF216M245001-T

$0.99

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:aa1d9b8a804d Category: RF Antennas Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AF216M245001-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 2.4GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AF216M245001-T

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：3
Return Loss：-
Gain：1.6dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.063" (1.60mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for AF216M245001-T

AF216M245001-T

Antennas RF Overview

The AF216M245001-T is a chip antenna manufactured by Taiyo Yuden, designed for wireless communication applications. It operates within the 2.4GHz to 2.5GHz frequency range, supporting protocols such as Bluetooth, WLAN, and Zigbee. The component features a surface mount package with solder termination and a maximum height of 0.020 inches (0.50mm). It provides a gain of 1.6 dBi and maintains a VSWR of 3. The device functions within an operating temperature range of -40°C to +85°C and complies with RoHS3 standards.

Antennas RF Feature Summary

Supports Bluetooth, WLAN, and Zigbee wireless protocols
Compact surface mount design suitable for space-constrained PCB layouts
Operates reliably across industrial temperature ranges

Antennas RF Applications

Bluetooth Low Energy (BLE) devices
Wireless Local Area Network (WLAN) modules
Zigbee sensor nodes and controllers

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to integration. Confirm that the target PCB layout accommodates the required ground plane specifications for optimal antenna performance. Ensure compliance with relevant regional regulatory requirements for the intended wireless application.

Antennas RF Selection Notes

Select this component for applications requiring a low-profile antenna solution in the 2.4GHz ISM band. Consider the 1.6 dBi gain and VSWR characteristics when designing the RF front-end. Evaluate the surface mount footprint against available board space and thermal management requirements.

Antennas RF Part Context

This part belongs to the Taiyo Yuden chip antenna series, which offers various solutions for short-range wireless communications. The AF216M245001-T specifically targets the 2.4GHz band, providing a standardized option for integrating wireless connectivity into compact electronic devices without requiring large external antennas.
