AFAC110020-S698

$5.09

Description：RF ANT 4G/LTE FLEX PRINTED
Series：AFAC
Mfr：Abracon LLC
Package：Bulk

SKU:a58f8845f751 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AFAC110020-S698 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 4G/LTE FLEX PRINTED. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AFAC110020-S698

Description：RF ANT 4G/LTE FLEX PRINTED
Series：AFAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：829MHz, 2.2GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type：PCB Trace
Number of Bands：2
VSWR：3
Return Loss：-
Gain：3dBi
Features：Cable - 100mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.008" (0.20mm)
Applications：4G, LTE
Power - Max：-

Antennas RF datasheet and documents for AFAC110020-S698

AFAC110020-S698

Antennas RF Overview

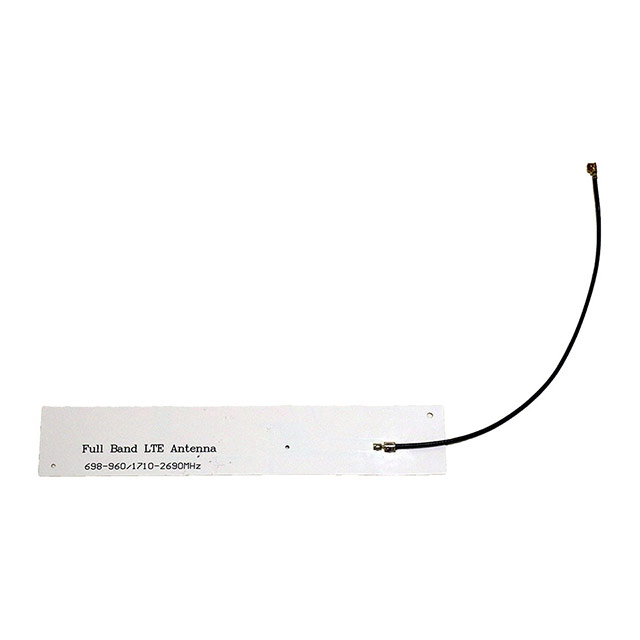

The AFAC110020-S698 is a flexible printed antenna designed for mobile station applications, operating within the 698-2700 MHz frequency range. It features linear polarization and an omni-directional radiation pattern with low VSWR characteristics. The component has a physical dimension of 110.0 x 20.0 x 0.2 mm and utilizes an embedded mounting style. Electrical specifications include a 50 Ohm impedance and a peak gain of 3.0 dBi. It connects via an IPEX connector attached to a 100 mm RF1.13 cable. The device operates between -40°C and +85°C and complies with RoHS standards.

Antennas RF Feature Summary

Operates across wide frequency bands from 698 to 2700 MHz
Features low profile flexible printed construction
Provides omni-directional radiation pattern with linear polarization
Includes integrated IPEX connector with short cable

Antennas RF Applications

Transportation systems
Smart city infrastructure
Home automation devices

Antennas RF Procurement Notes

Verify that the specific suffix S698 corresponds to the required IPEX connector type and cable length configuration. Confirm RoHS compliance status matches project requirements. Ensure the embedded mounting method is compatible with the target enclosure design. Check that the operating temperature range meets environmental conditions.

Antennas RF Selection Notes

Select this model when wideband coverage from 698 MHz to 2700 MHz is required in a compact form factor. The flexible PCB trace allows for integration into non-planar surfaces. The integrated cable simplifies assembly by eliminating separate connector mating steps. Verify that the 3.0 dBi gain meets link budget requirements for the intended application distance.

Antennas RF Part Context

This component belongs to Abracon's line of flexible antennas for wireless communication. It is engineered for mobile stations requiring reliable signal transmission in constrained spaces. The design supports modern cellular standards including LTE and GSM bands. The product emphasizes ease of installation through adhesive backing and pre-terminated cabling.
