AFAC120050-U6G

Antennas RF Overview

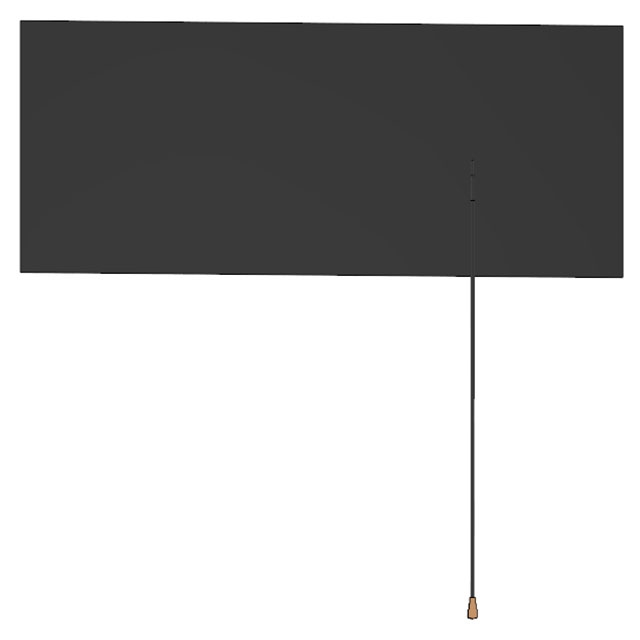

The AFAC120050-U6G is a flexible adhesive-mount RF antenna manufactured by Abracon LLC. It operates within a frequency range of 698 MHz to 6000 MHz, providing a linear gain of 5.0 dBi. The component features a 50 Ohm impedance and utilizes an IPEX connector interface. Its physical dimensions are 120.0 mm in length, 50.0 mm in width, and 0.2 mm in height.

Antennas RF Feature Summary

• Flexible flat patch design with adhesive mounting for easy integration
• Wideband operation covering sub-6 GHz frequencies
• Compact profile suitable for space-constrained applications

Antennas RF Applications

• UWB (Ultra-Wideband) systems
• Wi-Fi connectivity modules
• Bluetooth devices
• GPS navigation units
• 4G/LTE communication equipment

Antennas RF Procurement Notes

Verify current manufacturing status as the part may be obsolete or subject to tariff regulations depending on shipping destination. Confirm RoHS3 compliance requirements. Ensure IPEX connector compatibility with host PCB layout. Check for alternative sources if primary supply is unavailable.

Antennas RF Selection Notes

Select this antenna for applications requiring wideband coverage from 698 MHz to 6 GHz. Consider the 0.2 mm height for low-profile designs. Verify that the host device supports the required impedance and connector type. Evaluate environmental conditions for adhesive performance.

Antennas RF Part Context

This component belongs to Abracon's external antenna portfolio, designed for versatile wireless communication needs. It serves as a replacement for rigid antennas where flexibility and broad frequency support are critical. The product line targets modern IoT and mobile device markets.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Users should evaluate other Abracon UWB antennas with similar dimensions and connector types if availability is an issue.
