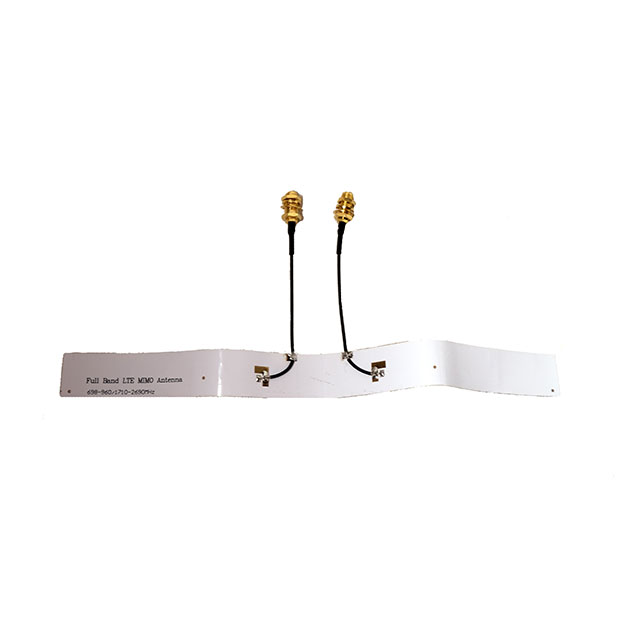

AFAC240020-M698

$6.90

Description：RF ANT LTE MIMO FPC
Series：AFAC
Mfr：Abracon LLC
Package：Bulk

SKU:b25ae152f354 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AFAC240020-M698 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT LTE MIMO FPC. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AFAC240020-M698

Description：RF ANT LTE MIMO FPC
Series：AFAC
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：829MHz, 2.2GHz
Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type：PCB Trace
Number of Bands：2
VSWR：3
Return Loss：-
Gain：3dBi
Features：Cable - 100mm
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.008" (0.20mm)
Applications：LTE
Power - Max：-

Antennas RF datasheet and documents for AFAC240020-M698

AFAC240020-M698

Antennas RF Overview

The AFAC240020-M698 is a flexible, dual-band cellular antenna manufactured by Abracon LLC. It supports frequency ranges of 698 MHz to 960 MHz and 1.71 GHz to 2.69 GHz, covering GSM, LTE, NB-IoT, and other cellular protocols. The component utilizes an adhesive mount for secure installation and features a linear polarization type.

Antennas RF Feature Summary

Dual-band operation supporting multiple cellular standards
Flexible form factor with adhesive mounting
Linear polarization design

Antennas RF Applications

GSM network devices
LTE communication modules
NB-IoT applications

Antennas RF Procurement Notes

Verify the specific connector interface and impedance requirements against your system design before procurement. Confirm that the adhesive backing is compatible with the target enclosure material to ensure mechanical stability during operation.

Antennas RF Selection Notes

Select this model when a low-profile, flexible solution is required for indoor or space-constrained cellular installations. Ensure the operating environment falls within the specified frequency bands for optimal signal transmission efficiency.

Antennas RF Part Context

This part belongs to Abracon's portfolio of RF antennas designed for mobile and IoT connectivity. It serves as a specialized component for integrating wireless communication capabilities into compact electronic devices requiring reliable cellular data transfer.
