AFAC5867-S698

Antennas RF Overview

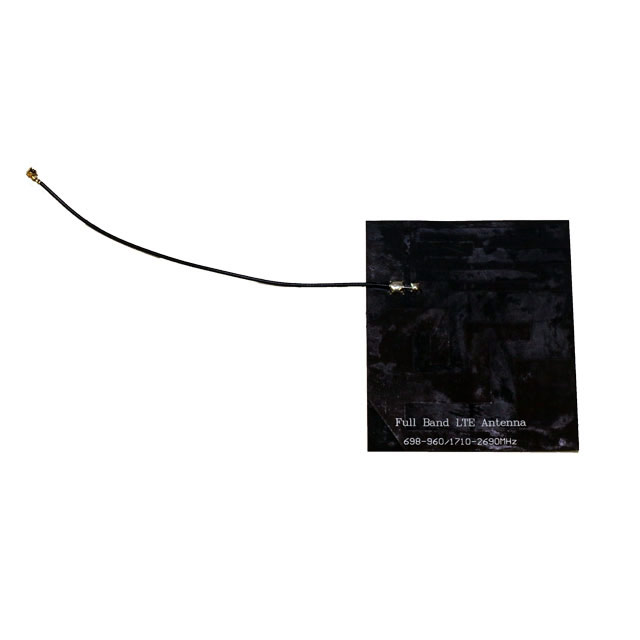

The AFAC5867-S698 is a flexible printed antenna designed for 4G and LTE applications. It operates within a frequency range of 1.71GHz to 2.69GHz, providing a gain of 2dBi. The component features a maximum Voltage Standing Wave Ratio (VSWR) of 2 and a characteristic impedance of 50 ohms with linear polarization. Physical dimensions are 67.4 x 58.4 x 0.2 mm. It utilizes an I-PEX MHF1 connector interface and employs adhesive mounting.

Antennas RF Feature Summary

• Flexible PCB construction for embedded integration
• Adhesive mounting mechanism for secure attachment
• Omni-directional radiation pattern

Antennas RF Applications

• 4G mobile devices
• LTE communication modules
• Embedded IoT hardware

Antennas RF Procurement Notes

Verify the specific connector type matches the system design requirements. Confirm that the operating frequency range aligns with the target network standards. Ensure the adhesive backing is compatible with the intended substrate material for optimal performance.

Antennas RF Selection Notes

Select this component when space constraints require a low-profile antenna solution. Consider the flexible nature of the PCB for non-planar surfaces. Validate that the 50-ohm impedance matches the RF front-end circuitry to minimize signal reflection.

Antennas RF Part Context

This model belongs to Abracon's line of internal antennas for wireless connectivity. It supports modern cellular standards requiring compact form factors. The design prioritizes ease of integration into portable electronic devices.

Antennas RF Replacement Considerations

Consult official substitution lists for direct equivalents. Verify dimensional compatibility before replacing existing designs. Ensure electrical parameters remain consistent to maintain system performance.
