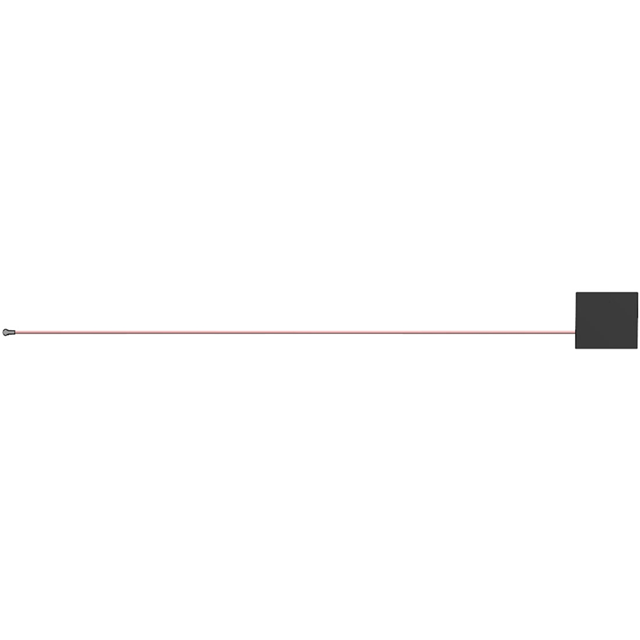

AFAG2220-SW2

$3.54

Description：RF ANT DUAL BAND WIFI FPC W/IPEX
Series：AFAG
Mfr：Abracon LLC
Package：Bulk

SKU:7fd5ca3062e9 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AFAG2220-SW2 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT DUAL BAND WIFI FPC W/IPEX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AFAG2220-SW2

Description：RF ANT DUAL BAND WIFI FPC W/IPEX
Series：AFAG
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz
Antenna Type：PCB Trace
Number of Bands：2
VSWR：2, 2.5
Return Loss：-
Gain：2dBi
Features：Cable - 220mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：-
Applications：Bluetooth, Wi-Fi
Power - Max：3 W

Antennas RF datasheet and documents for AFAG2220-SW2

AFAG2220-SW2

Antennas RF Overview

The AFAG2220-SW2 is a dual-band flexible printed circuit (FPC) antenna designed for Bluetooth and Wi-Fi applications. It operates across 2.4 GHz, 5.85 GHz, and 7.125 GHz frequency ranges with an integrated IPEX connector. The unit measures 22.0 x 20.0 mm and provides a gain of 2 dBi. It features adhesive mounting and supports protocols including BT and Wi-Fi 2.4/5/6 GHz.

Antennas RF Feature Summary

Integrated IPEX connector for direct RF interface
Flexible FPC structure with adhesive mounting
Omni-directional radiation pattern

Antennas RF Applications

Bluetooth devices
Wi-Fi enabled electronics
IoT modules

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm impedance matching and connector orientation. Ensure the adhesive backing is compatible with the target enclosure material. Check RoHS compliance status if required by regional regulations. Confirm lead time availability as manufacturing schedules may vary.

Antennas RF Selection Notes

Select this component when space constraints require a low-profile solution. The integrated connector simplifies assembly compared to discrete antenna designs. Verify that the operating frequency bands align with the system's regulatory requirements. Consider the mechanical flexibility needed for curved surfaces.

Antennas RF Part Context

This model belongs to the AFAG2220 series of flexible antennas from Abracon. It is distinct from larger format variants like the AFAG7020-S824 which targets cellular frequencies. The SW2 suffix indicates specific tuning for dual-band wireless protocols.
