AFAG3030-SG3

Antennas RF Overview

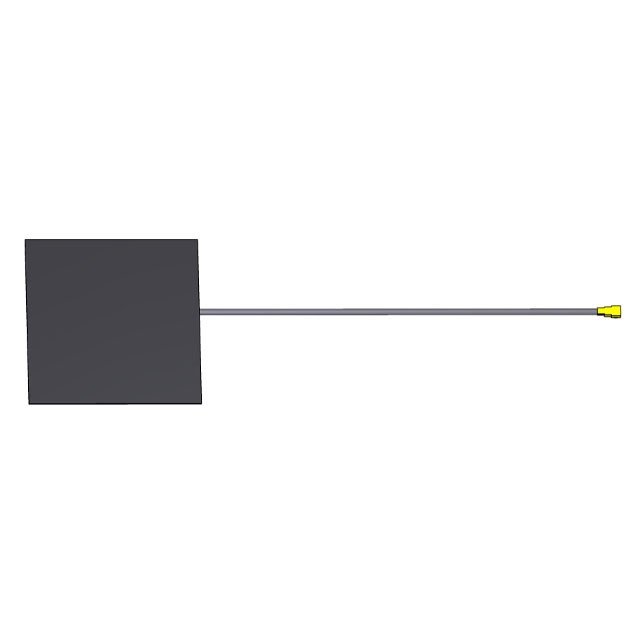

The AFAG3030-SG3 is a flexible printed circuit (FPC) antenna designed for multi-constellation GNSS applications. It supports GPS, GLONASS, Galileo, and Beidou satellite systems within the 1.55 GHz to 1.62 GHz frequency range. The component features a 30x30 mm footprint with a 240 mm flex cable length and a U.FL connector interface. It provides a gain of 3 dBi and operates at a center frequency of 1585 MHz. The antenna has an impedance of 50 Ohms, a maximum power handling of 3 W, and a low profile height of 0.2 mm.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, and Beidou
• Ultra-low profile flexible design suitable for space-constrained embedded applications
• Integrated U.FL connector interface for direct board connection

Antennas RF Applications

• Global positioning devices requiring multi-constellation support
• Embedded IoT modules utilizing GNSS capabilities
• Portable tracking hardware with limited internal volume

Antennas RF Procurement Notes

Verify the specific connector type and cable length against project requirements, as distributor listings may vary between U.FL and IPEX descriptions. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributors before finalizing procurement. Ensure the flex cable routing accommodates the specified dimensions during mechanical integration.

Antennas RF Selection Notes

Select this component when multi-constellation reception is required alongside strict spatial constraints due to its ultra-low profile. The integrated flex cable simplifies assembly compared to rigid PCB antennas. Verify that the operating frequency band aligns with the target GNSS signals and that the connector interface matches the host board layout.

Antennas RF Part Context

This part belongs to Abracon's family of embedded GNSS antennas. It is categorized under RF antennas and specifically designed for flexible form factors. The product line targets applications needing reliable satellite connectivity without the bulk of traditional external antennas.

Antennas RF Replacement Considerations

Cross-reference with other Abracon FPC antennas in the same series for similar footprint and performance characteristics. Verify compatibility regarding connector type and cable length when substituting.
