AFAG4330-SG3

Antennas RF Overview

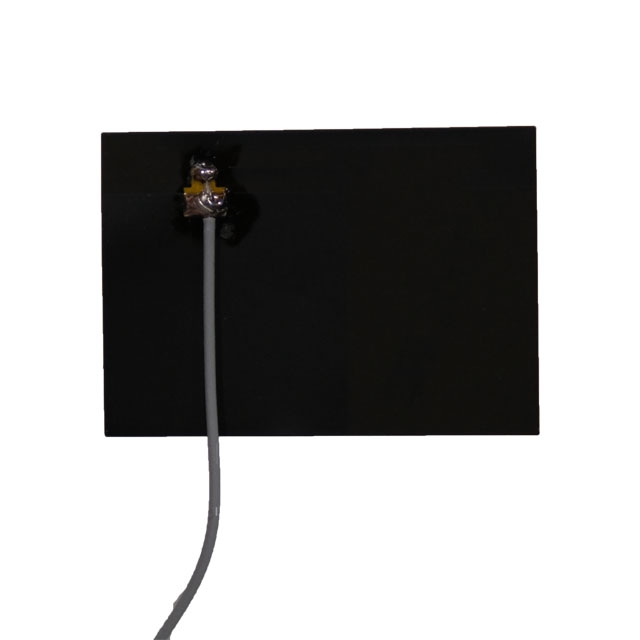

The Abracon AFAG4330-SG3 is a multi-band GNSS flexible printed circuit antenna designed for GPS, GLONASS, Galileo, and Beidou systems. It operates within the 1.55 GHz to 1.62 GHz frequency range with an omnidirectional azimuthal radiation pattern. The component features a U.FL connector and measures 43x30 mm. It supports a wide operating temperature range from -40°C to +85°C.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, and Beidou.
• Features a flexible PCB trace design suitable for embedded integration.
• Provides omnidirectional azimuthal bandwidth for consistent signal reception.

Antennas RF Applications

• Automotive telematics and navigation systems
• Mobile devices requiring GNSS positioning
• IoT tracking modules
• Medical equipment with location services

Antennas RF Procurement Notes

Verify that the specific revision of the datasheet matches the required impedance and connector type for your design. Confirm that the U.FL mating connector on the host board is compatible with the antenna's interface. Ensure the adhesive backing specifications meet the mechanical requirements of the target enclosure material.

Antennas RF Selection Notes

Select this model when multi-constellation support is required in a compact form factor. The flexible substrate allows for installation on curved surfaces or tight spaces where rigid antennas cannot fit. Consider the operating temperature range if the application involves extreme environmental conditions.

Antennas RF Part Context

This part belongs to Abracon's GNSS antenna portfolio, specifically engineered for high-performance satellite positioning. It complements other RF components by providing reliable signal acquisition for navigation protocols. The series is designed to meet the stringent size and performance demands of modern mobile and automotive electronics.

Antennas RF Replacement Considerations

Direct substitutes include the AFAG3030-SG3 for smaller footprint applications and the AEACAC053010Z-S433 for whip-style mounting needs. Verify that any replacement maintains the same frequency coverage and connector compatibility.
