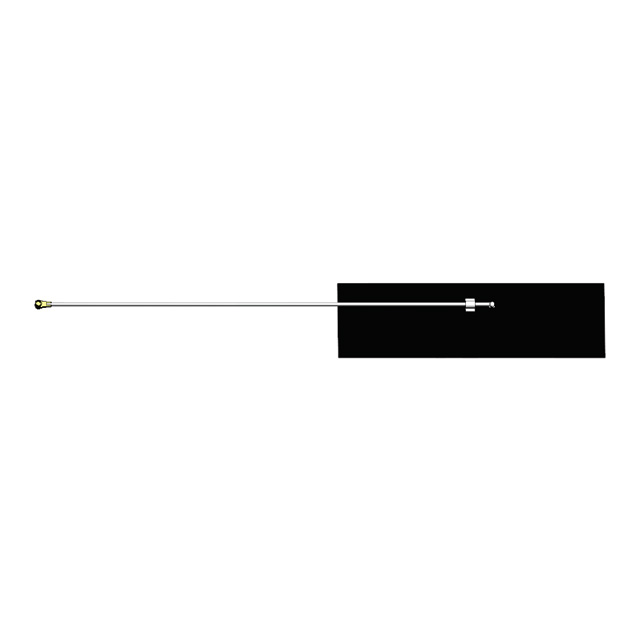

AFAG7020-S824

$3.76

Description：RF ANT 2G/3G/GSM FLEX PCB
Series：AFAG
Mfr：Abracon LLC
Package：Bulk

SKU:e718d85b72d6 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AFAG7020-S824 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 2G/3G/GSM FLEX PCB. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AFAG7020-S824

Description：RF ANT 2G/3G/GSM FLEX PCB
Series：AFAG
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.2GHz
Frequency Range：824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.71GHz ~ 1.99GHz, 1.85GHz ~ 2.69GHz
Antenna Type：PCB Trace
Number of Bands：5
VSWR：3
Return Loss：-
Gain：2dBi, 3.5dBi
Features：Cable - 120mm
Termination：U.FL (UMCC), I-PEX MHF1
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：-
Applications：2G, 3G, DCS, GSM, PCS, UMTS
Power - Max：10 W

Antennas RF datasheet and documents for AFAG7020-S824

AFAG7020-S824

Antennas RF Overview

The AFAG7020-S824 is a flexible printed circuit antenna designed for internal or embedded mounting. It operates within a frequency range of 1.71GHz to 2.69GHz, supporting 2G, 3G, GSM, and GPRS applications. The component features a linear polarization with a gain of 3.5dBi and a VSWR of 3. It utilizes an IPEX (U.FL) connector for termination and includes a 120mm cable length. The physical dimensions are 70 x 20 mm, and it employs an adhesive mount type.

Antennas RF Feature Summary

Flexible PCB construction for low-profile internal installation
Omni-directional radiation pattern for consistent signal coverage
Integrated adhesive backing for secure board attachment

Antennas RF Applications

2G mobile devices
3G communication modules
GSM handsets
GPRS enabled equipment

Antennas RF Procurement Notes

Verify the specific connector variant and cable length requirements against the official datasheet before procurement. Confirm that the operating frequency range aligns with the target network standards. Ensure the adhesive mounting method is compatible with the device enclosure design. Cross-reference the manufacturer part number to avoid confusion with similar flexible antenna models.

Antennas RF Selection Notes

Select this model when a low-profile, flexible antenna solution is required for compact wireless devices. Consider the 120mm cable length for routing constraints within the assembly. Evaluate the 3.5dBi gain and 3 VSWR specifications against system link budget requirements. Ensure compatibility with U.FL/IPEX interfaces used in the host electronics design.

Antennas RF Part Context

This component belongs to Abracon's family of flexible RF antennas intended for mobile and wireless applications. It serves as an alternative to rigid PCB antennas where space constraints or mechanical flexibility are critical factors. The product is categorized under internal/embedded antennas suitable for consumer electronics and industrial IoT devices requiring reliable cellular connectivity.
