AFB4506A-0100II

$3.39

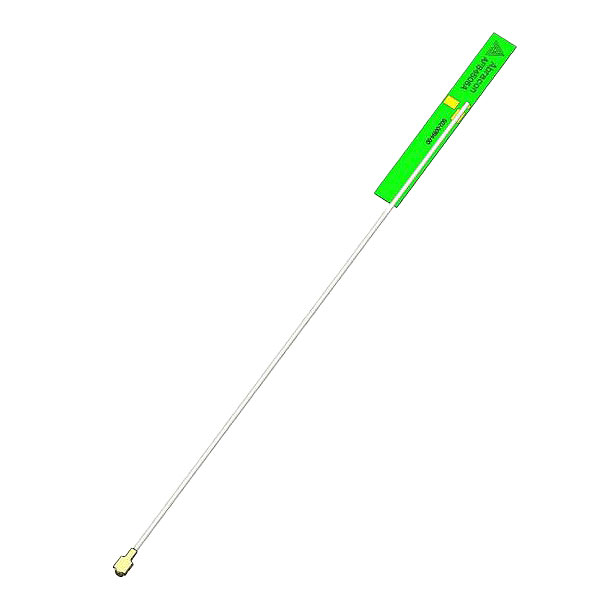

Description：RF ANT TRI-BAND WIFI6E 2.4/5/6 G
Series：-
Mfr：Abracon LLC
Package：Bag

SKU:b3bac810328a Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AFB4506A-0100II is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT TRI-BAND WIFI6E 2.4/5/6 G. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AFB4506A-0100II

Description：RF ANT TRI-BAND WIFI6E 2.4/5/6 G
Series：-
Mfr：Abracon LLC
Package：Bag
RF Family/Standard：Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.53GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz
Antenna Type：Flat Patch
Number of Bands：3
VSWR：2
Return Loss：-
Gain：1.8dBi, 3.6dBi, 4.3dBi
Features：Cable - 100mm
Termination：I-PEX MHF1 (U.FL)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.016" (0.40mm)
Applications：802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for AFB4506A-0100II

AFB4506A-0100II

Antennas RF Overview

The AFB4506A-0100II is a flexible internal Wi-Fi 6E antenna manufactured by Abracon. It operates across a frequency range of 2.4 GHz to 7.125 GHz, supporting protocols including Bluetooth, BLE, 802.15.1, and Zigbee. The component features a gain of 4.3 dBi, an impedance of 50 ohms, and a VSWR of 2. It utilizes an I-PEX MHF1 (U.FL) connector with a 100mm cable and adhesive mounting. The unit functions within a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

Supports multi-protocol wireless standards including Wi-Fi 6E, Bluetooth, and Zigbee
Flexible design with adhesive mounting for compact integration
Wideband operation covering 2.4 GHz through 7.125 GHz

Antennas RF Applications

Wi-Fi 6E indoor devices
Bluetooth Low Energy modules
Zigbee network nodes
WLAN embedded systems

Antennas RF Procurement Notes

Verify the specific ordering suffix and connector type against the official Abracon datasheet to ensure compatibility with the target RF circuit. Confirm that the adhesive backing meets the mechanical requirements of the intended enclosure material. Check RoHS compliance status if required by regulatory standards.

Antennas RF Selection Notes

Select this component when a low-profile, flexible solution is required for multi-band wireless applications. Ensure the host PCB layout accommodates the 100mm cable length and U.FL connector clearance. Validate that the operating environment stays within the specified -40°C to +85°C thermal limits.

Antennas RF Part Context

This part belongs to Abracon's line of indoor flexible antennas designed for space-constrained electronics. It addresses the need for reliable connectivity in modern IoT and consumer devices that require support for emerging Wi-Fi 6E bands alongside legacy 2.4 GHz and 5 GHz operations.
