AFB4714A-0190S

$3.01

Description：RF ANT TRI BAND WI-FI6E FLEX PRI
Series：-
Mfr：Abracon LLC
Package：Bulk

SKU:fa03f3ea82a9 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AFB4714A-0190S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT TRI BAND WI-FI6E FLEX PRI. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AFB4714A-0190S

Description：RF ANT TRI BAND WI-FI6E FLEX PRI
Series：-
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.525GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Antenna Type：Flat Patch
Number of Bands：3
VSWR：2
Return Loss：-
Gain：2.7dBi, 3.1dBi, 3.2dBi
Features：Cable - 190mm
Termination：I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.016" (0.40mm)
Applications：Wi-Fi
Power - Max：-

Antennas RF datasheet and documents for AFB4714A-0190S

AFB4714A-0190S

Antennas RF Overview

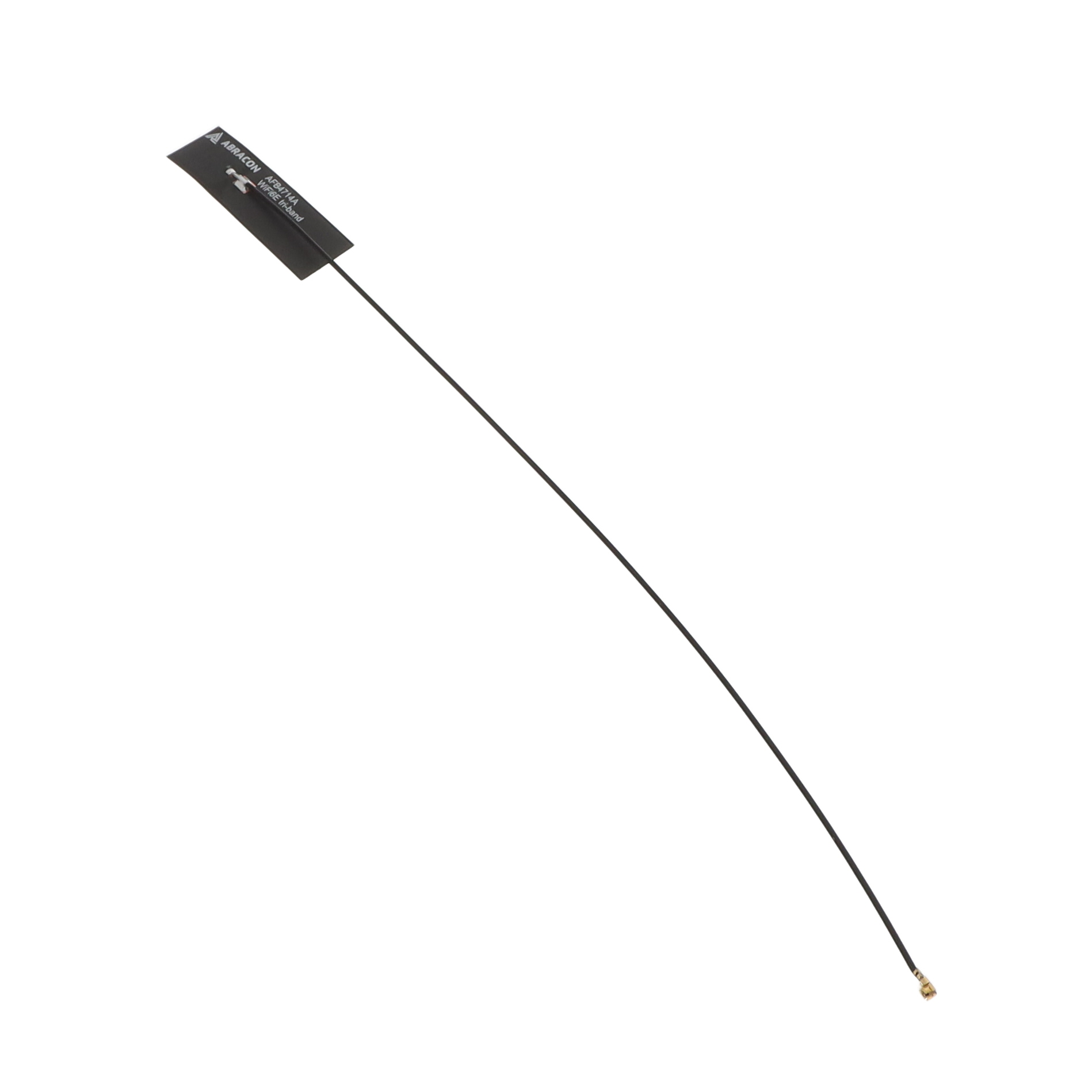

The AFB4714A-0190S is a tri-band Wi-Fi 6E flexible printed antenna manufactured by Abracon LLC. It operates across the 2.4GHz, 5GHz, and 6GHz frequency bands, supporting center frequencies of 2.45GHz, 5.5GHz, and 6.525GHz. The component utilizes an I-PEX connector interface and features a flat patch design with adhesive backing for secure mounting.

Antennas RF Feature Summary

Supports tri-band Wi-Fi 6E standards for comprehensive wireless connectivity
Flexible printed construction allows for compact integration in space-constrained devices
Includes adhesive tape for straightforward installation without additional hardware

Antennas RF Applications

Wi-Fi 6E enabled consumer electronics
IoT devices requiring multi-band connectivity
Wearable technology with limited internal volume

Antennas RF Procurement Notes

Verify that the specific order matches the AFB4714A-0190S designation to ensure compatibility with Wi-Fi 6E tri-band requirements. Confirm the presence of the I-PEX connector type and adhesive mounting style during receipt inspection. Ensure the component status remains active as listed by the manufacturer before finalizing procurement plans.

Antennas RF Selection Notes

Select this component when designing systems that require simultaneous operation across 2.4GHz, 5GHz, and 6GHz bands. The flexible form factor is suitable for applications where rigid antennas cannot fit. Ensure the host device supports the necessary RF circuitry for Wi-Fi 6E protocols to utilize the full capability of this antenna.

Antennas RF Part Context

This antenna belongs to Abracon's RF antenna portfolio, specifically designed for modern wireless communication standards. It addresses the growing demand for high-speed data transmission in crowded spectrum environments by leveraging the newly available 6GHz band alongside traditional 2.4GHz and 5GHz operations.
