AFB7006A2-0200W

Antennas RF Overview

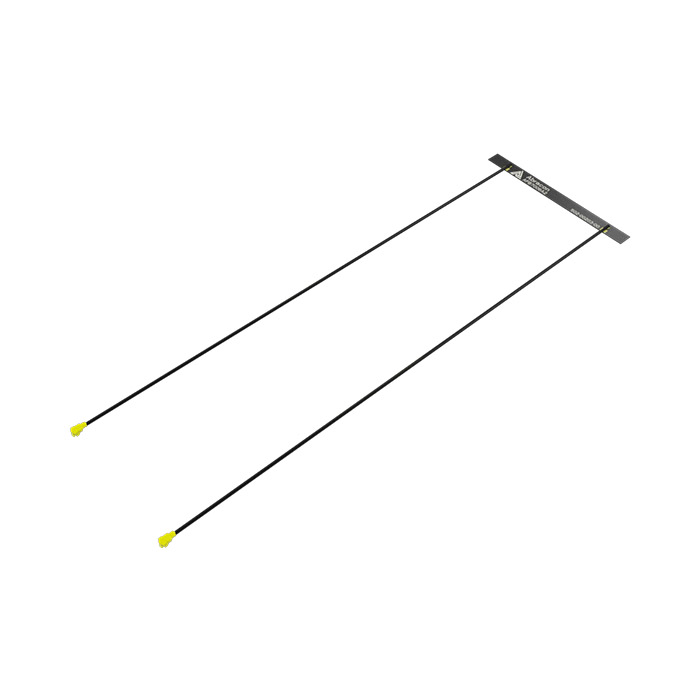

The AFB7006A2-0200W is a tri-band Wi-Fi 6E flexible printed MIMO antenna designed for 2.4/5/6 GHz operations. It features a compact design with high efficiency up to 70%. Dimensions are 70 mm length, 6 mm width, and 0.2 mm height. Gain is 3.8 dBi. It uses an I-PEX MHF4 (U.FL) connector and adhesive mounting.

Antennas RF Feature Summary

• Supports 2x MIMO for 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, and Zigbee
• Flexible printed construction allows installation on flat and curved surfaces
• Compact form factor with high radiation efficiency

Antennas RF Applications

• Wi-Fi 6E access points and routers
• IoT devices requiring multi-band connectivity
• Bluetooth-enabled smart home equipment

Antennas RF Procurement Notes

Verify the specific datasheet version for exact impedance and VSWR values. Confirm the I-PEX MHF4 connector compatibility with your RF circuit board layout. Ensure the adhesive backing meets the thermal and mechanical requirements of the target enclosure material before final integration.

Antennas RF Selection Notes

Select this component when space-constrained designs require support for 2.4, 5, and 6 GHz bands simultaneously. The flexible substrate accommodates non-planar chassis geometries. Verify that the 3.8 dBi gain meets the link budget requirements for the intended application range.

Antennas RF Part Context

Abracon LLC manufactures RF antennas and passive components. This model belongs to their flexible printed antenna series, optimized for modern wireless standards including Wi-Fi 6E. The product line focuses on compact, high-efficiency solutions for consumer and industrial electronics.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Abracon technical support for equivalent flexible MIMO antenna alternatives if this specific model is unavailable.
