Product Detailed Parameters

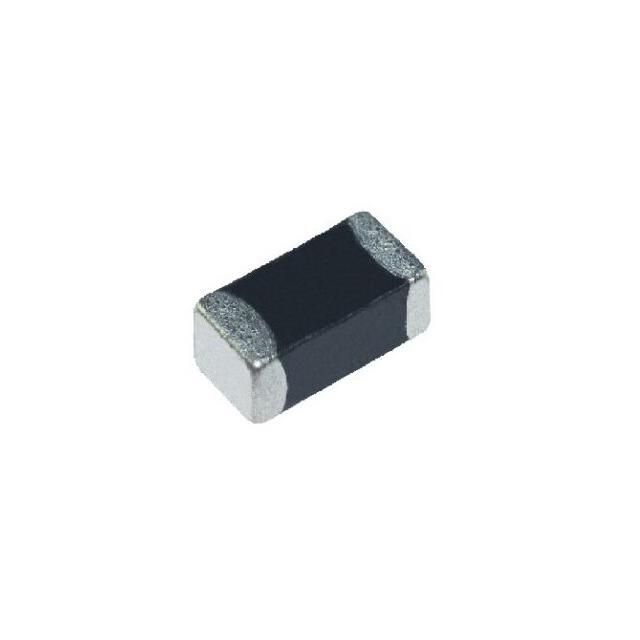

- Description：FERRITE BEAD 30 OHM 0805 1LN
- Series：AFBC-Q0805H
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：30 Ohms @ 100 MHz
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：40mOhm
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 150°C
- Package / Case：0805 (2012 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.033" (0.85mm)
- Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
- Features：Automotive
Download product information
Overview
The AFBC-Q0805H-300-T is a surface-mount ferrite bead from the Abracon AFBC-Q0805H series, housed in an 0805 [2012 Metric] package. It exhibits an impedance of 30 ohms at its rated frequency and supports a maximum DC current rating of 3A. The component features a maximum DC resistance of 0.04 ohms. It operates within a temperature range of -55°C to +150°C. Physical dimensions include a length of 2.0 mm, width of 1.25 mm, and height of 0.85 mm.
Feature Summary
- Provides electromagnetic interference suppression through high-frequency noise attenuation
- Designed for surface mount technology integration on printed circuit boards
- Constructed with ferrite material for effective signal filtering applications
Applications
- General electronic equipment signal integrity management
- Communication device power line filtering
- Portable electronics noise reduction
Procurement Notes
Verify the specific suffix 'T' indicates tape and reel packaging configuration as per manufacturer standards. Confirm RoHS compliance status directly with official documentation before procurement. Ensure the 0805 footprint matches the target PCB design constraints. Validate that the 3A current rating meets the application's peak load requirements without saturation.
Selection Notes
Select this component when a 30-ohm impedance characteristic is required for noise suppression in space-constrained designs. The 0805 package offers a balance between current handling capacity and board real estate. Consider the 3A DC current rating for power supply lines or high-current signal paths. The extended operating temperature range up to 150°C suits environments with elevated thermal conditions.
Part Context
This part belongs to the AFBC-Q0805H series of ferrite beads manufactured by Abracon LLC. The series utilizes a chip-style construction optimized for surface mounting. These components are engineered to attenuate unwanted high-frequency signals while maintaining low insertion loss for desired frequencies. The 0805 form factor is standard for many consumer and industrial electronic assemblies.
Replacement Considerations
Consult official substitution guides for compatible alternatives. Verify that any substitute maintains identical impedance values, current ratings, and physical dimensions. Ensure the replacement component meets the same thermal and electrical performance specifications.
