AFBC-Q4515-600-T

Overview

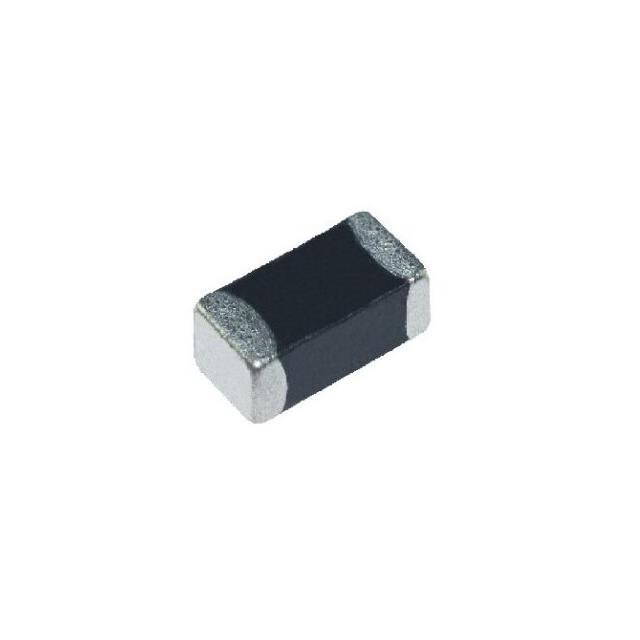

The AFBC-Q4515-600-T is a surface-mount ferrite bead manufactured by Abracon LLC. It features a 60 Ohm impedance at the standard test frequency and supports a current rating of 6 Amperes. The component utilizes an 1806 package size for compact integration. It exhibits a low DC resistance of 10 milliohms to minimize power loss in high-current applications. The device is RoHS compliant and designed for efficient noise suppression in power lines.

Feature Summary

• Provides effective electromagnetic interference suppression in power circuits
• Supports high continuous current operation with minimal voltage drop
• Utilizes a compact surface-mount form factor for space-constrained designs

Applications

• Power supply input filtering
• Voltage regulation circuit noise reduction
• Battery charger signal integrity protection

Procurement Notes

Verify the specific impedance value and current rating against the official Abracon datasheet before procurement. Confirm that the 1806 package dimensions match the target PCB footprint requirements. Ensure the supplier provides documentation confirming RoHS compliance status. Check for any specific handling instructions regarding moisture sensitivity levels during storage and assembly processes.

Selection Notes

Select this component when designing circuits requiring significant noise attenuation on high-current rails. The low DC resistance makes it suitable for applications where efficiency is critical. Consider the physical size constraints of the 1806 package relative to available board space. Evaluate the thermal performance characteristics under maximum load conditions to ensure reliable long-term operation.

Part Context

This ferrite bead belongs to Abracon's passive component portfolio, specifically within the ferrite beads and chips category. It serves as a passive filter element used to suppress high-frequency noise in electronic systems. The product line focuses on providing reliable signal integrity solutions for modern electronic devices through standardized surface-mount packaging.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative ferrite beads based on matching impedance curves, current ratings, and package dimensions.
