Product Detailed Parameters
- Description：FERRITE BEAD 150 OHM 1812 1LN
- Series：AFBC-Q4532
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：150 Ohms @ 100 MHz
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：20mOhm
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 150°C
- Package / Case：1812 (4532 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.059" (1.50mm)
- Size / Dimension：0.177" L x 0.126" W (4.50mm x 3.20mm)
- Features：Automotive
Download product information
Overview

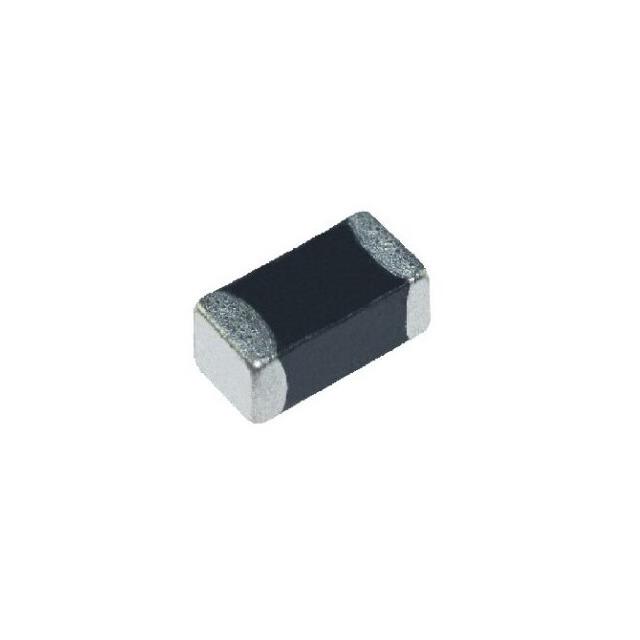

The AFBC-Q4532-151-T is a surface-mount ferrite bead manufactured by Abracon LLC. It features an 1812 (4532 Metric) package and provides a nominal impedance of 150 ohms at 100 MHz. The component has a maximum DC resistance of 20 milliohms and supports a current rating of 5 amperes. It operates within a temperature range of -55°C to 150°C and holds AEC-Q200 automotive qualification ratings.
Feature Summary
- Provides high-frequency noise suppression through ferrite material properties
- Supports high-current applications with low DC resistance
- Automotive-grade reliability certified under AEC-Q200 standards
- Compact surface-mount design suitable for space-constrained PCB layouts
Applications
- Automotive electronic circuit protection
- High-speed digital signal line filtering
- Power supply output noise reduction
Procurement Notes
Verify the specific datasheet version for precise impedance curves and thermal derating information. Confirm that the 1812 package dimensions align with your PCB footprint requirements. Ensure the 5A current rating meets the operational demands of your specific circuit application before finalizing procurement.
Selection Notes
Select this component when high current handling capability is required alongside effective high-frequency noise attenuation. The low DC resistance minimizes power loss in power lines. The AEC-Q200 certification makes it suitable for automotive environments where thermal stability and reliability are critical constraints.
Part Context
This ferrite bead belongs to Abracon's passive component portfolio, specifically designed for electromagnetic interference suppression. Unlike oscillators in the same brand lineup, this part functions as a passive filter element rather than a frequency generation device, focusing on signal integrity maintenance in noisy environments.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs by matching impedance characteristics, current ratings, and physical package dimensions before considering alternative sources.
