AFC10.7MC35

Overview

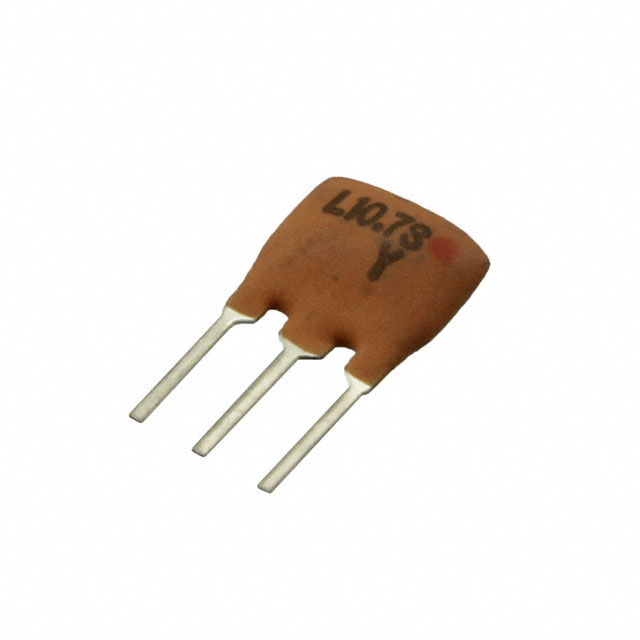

The AFC10.7MC35 is a ceramic filter manufactured by Abracon LLC, designed for operation at a standard frequency of 10.7 MHz. It is classified as a leaded low loss ceramic filter within the company's product portfolio. The component features a maximum insertion loss specification revised to 3.5±2.0 dB, replacing the previous value of 3.5±1.5 dB. This device serves as a specialized passive electronic component intended for signal filtering applications in electronic circuits.

Feature Summary

• Operates at a standard frequency of 10.7 MHz
• Features leaded construction for through-hole mounting
• Designed as a low loss ceramic filter

Applications

• Signal filtering in embedded systems
• Radio frequency circuit applications
• Audio intermediate frequency stages

Procurement Notes

Verify current manufacturing status before procurement planning. Official sources indicate this specific part number may be discontinued or no longer manufactured. Confirm availability with authorized distributors and check for valid replacement components if active sourcing is required for production needs.

Selection Notes

Select this component only when a 10.7 MHz ceramic filter with leaded termination is specifically required. Ensure the application can accommodate the specified insertion loss characteristics. Verify that the package type matches the PCB design constraints and that the frequency response aligns with system requirements.

Part Context

This component belongs to Abracon's line of ceramic filters, specifically the AFC series. These devices are engineered for stable performance in communication and audio processing circuits. The AFC10.7MC35 represents a legacy item within this family, historically used where discrete ceramic filtering was preferred over integrated solutions.

Replacement Considerations

Check for updated Abracon part numbers in the same frequency range. Consult distributor databases for equivalent leaded ceramic filters from other manufacturers if this unit is unavailable. Ensure replacement parts match the 10.7 MHz center frequency and similar electrical specifications.
