AFC8513U4GS-0100S

Antennas RF Overview

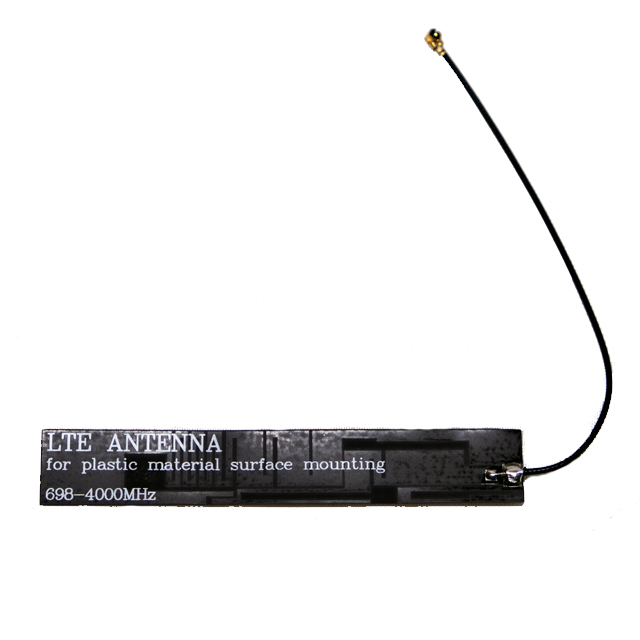

The AFC8513U4GS-0100S is a passive I-Bar flex PCB antenna manufactured by Abracon LLC, designed for multi-band wireless communication. It operates within a frequency range of 698 MHz to 4 GHz, with a center frequency of 2.349 GHz. The component provides a gain of 5 dBi and maintains a 50 Ohm impedance with a VSWR of 3. Rated for 5 W power handling, it functions between -40°C and +85°C. Physical dimensions are 85 mm in length, 13.8 mm in width, and 0.2 mm in height. It features an IPEX-1 female connector and adhesive mounting.

Antennas RF Feature Summary

• Supports multiple cellular protocols including 2G, 3G, 4G, 5G, LTE, NB-IoT, and GNSS standards such as GPS, GLONASS, and Beidou.
• Incorporates WiFi compatibility alongside IoT sub-GHz applications for versatile connectivity.
• Utilizes a flexible I-Bar trace design suitable for space-constrained embedded installations.

Antennas RF Applications

• M2M (Machine-to-Machine) communication devices
• Wearable technology and smart wearables
• Smart metering and home automation systems

Antennas RF Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Abracon or authorized distributors before finalizing procurement. Ensure that the IPEX-1 connector interface matches the target device's RF port configuration. Confirm that the adhesive mounting method is compatible with the intended enclosure material and environmental conditions. Cross-reference the operating temperature range against the application's thermal profile to ensure reliability under extreme conditions.

Antennas RF Selection Notes

Select this antenna when a low-profile, flexible solution is required for multi-band cellular and GNSS integration. The 5 dBi gain and 50 Ohm impedance make it suitable for standard RF front-end designs. Consider the 85 mm length and adhesive form factor for applications where board space is limited but external antenna placement is necessary. Ensure the host device supports the wide frequency range from 698 MHz to 4 GHz.

Antennas RF Part Context

This component belongs to Abracon’s cellular antenna portfolio, specifically targeting GSM, LTE, and 5G applications. It is categorized as a PCB trace antenna with a passive design. The part is distinct from rigid patch antennas due to its flexible I-Bar construction, allowing it to conform to curved surfaces or fit into tight mechanical envelopes while maintaining consistent RF performance across multiple bands.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing RF layouts if considering alternative models from other manufacturers.

Antennas RF FAQ

What is the physical form factor of the AFC8513U4GS-0100S?

It is a flexible I-Bar trace antenna with dimensions of 85 mm x 13.8 mm x 0.2 mm, designed for adhesive mounting.

Does this antenna support GNSS signals?

Yes, it supports GNSS protocols including GPS, GLONASS, and Beidou in addition to cellular and WiFi bands.
