Product Detailed Parameters
- Description：FILTER FILM FEED THROUGH AXL
- Series：AFCL 100
- Mfr：KEMET
- Package：Bulk
- Voltage - Rated：350V
- Current：1:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing
- Size / Dimension：0.394" Dia x 0.752" L (10.00mm x 19.10mm)
- Capacitance：0.1 µF
- Tolerance：-
- DC Resistance (DCR) (Max)：200mOhm
- Insertion Loss：63dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

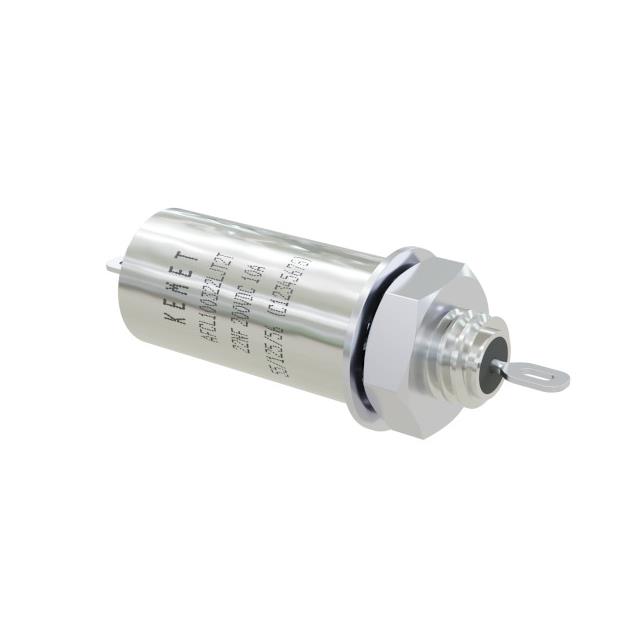

The KEMET AFCL100310LFW1T is a small signal feed-through filter capacitor designed for surface-mount applications. It features an axial bushing configuration with a capacitance of 0.1 µF and a voltage rating of 350 V. The component provides an impedance of 200 mOhm and supports a current handling capacity of 1 A. Constructed as a film capacitor, it utilizes a lead-free termination process compliant with RoHS standards. The device is engineered to suppress electromagnetic interference in sensitive circuits while maintaining structural integrity under specified electrical loads.
Feature Summary
- Feed-through topology for effective interference suppression
- Surface-mount axial bushing design
- Lead-free construction compliant with environmental standards
Applications
- Electromagnetic interference suppression in sensitive circuits
- Small signal filtering applications
- Industrial control systems requiring compact filtering solutions
Procurement Notes
Verify the specific suffix LFW1T against official KEMET documentation to confirm exact physical dimensions and termination specifications. Ensure compatibility with automated surface-mount assembly processes. Confirm that the 350 V rating and 1 A current capacity align with the target circuit requirements before procurement.
Selection Notes
Select this component when a compact, surface-mount feed-through filter is required for high-frequency noise reduction. The 0.1 µF capacitance value suits general-purpose signal line filtering. Consider the 200 mOhm impedance for low-loss signal transmission. Verify thermal management capabilities within the final enclosure design.
Part Context
This part belongs to the KEMET AFCL series of feed-through capacitors. These components are specifically engineered for applications demanding high reliability and compact form factors. The series integrates filtering capabilities directly into the mounting structure, simplifying PCB layout and enhancing noise immunity in dense electronic assemblies.
Replacement Considerations
Consult official KEMET substitution guides for verified alternatives. Cross-reference pinout configurations and electrical ratings carefully. Generic equivalents may not match the specific feed-through mechanical interface or impedance characteristics.
