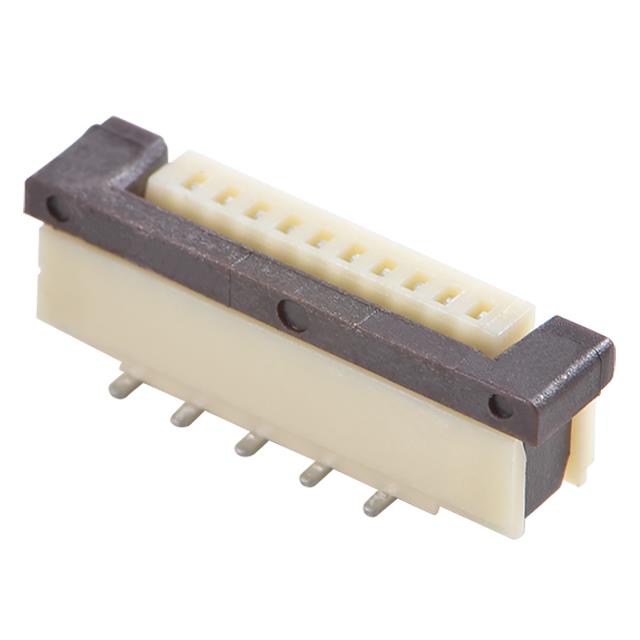

AFFC10-10-100-SVS-R

Product Detailed Parameters

• Description：CONN FPC VERT 10POS 1MM SMD
• Series：-
• Mfr：Assmann WSW Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：10
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.205" (5.20mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polyamide (PA6T), Nylon 6T
• Actuator Material：Polyamide (PA6T), Nylon 6T
• Features：-
• Voltage Rating：-
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0
