AFII-DF-0035

Overview

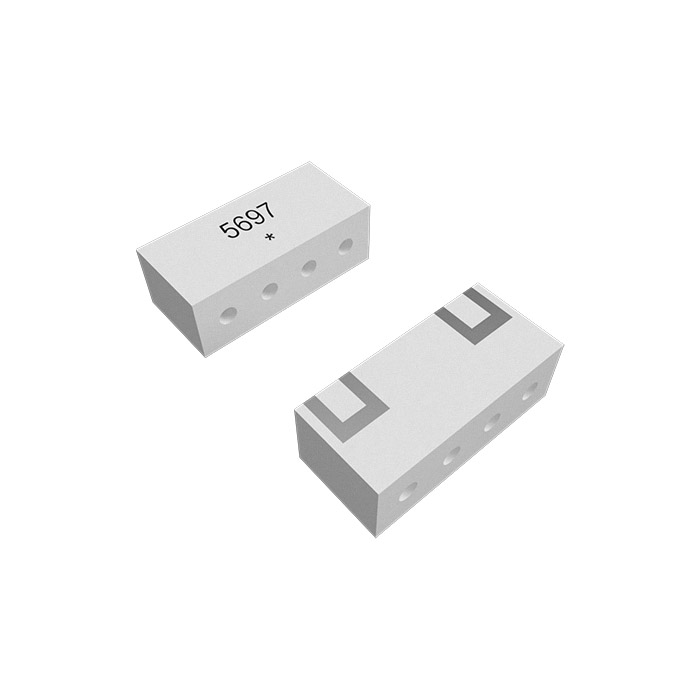

The AFII-DF-0035 is a bandpass dielectric filter designed for Wi-Fi 6E and Wi-Fi 7 coexistence applications. It operates at a center frequency of 5697 MHz with a bandwidth of 360 MHz, covering the 5490–5850 MHz range (U-NII-2C / U-NII-3). The component features an insertion loss of 1.1 dB and a 50 Ohm impedance. It utilizes SMD/SMT termination in an 8.7 x 4.0 x 3.0 mm package. Operating temperatures range from -40°C to +85°C or +105°C depending on specific documentation.

Feature Summary

• High out-of-band rejection capabilities for signal conditioning
• Compact surface-mount design suitable for space-constrained layouts
• RoHS compliant construction

Applications

• Wi-Fi 6E device integration
• Wi-Fi 7 device integration
• Signal line filtering in wireless communication modules

Procurement Notes

Verify the specific operating temperature rating (+85°C vs +105°C) against the manufacturer's current datasheet, as sources vary. Confirm RoHS compliance status directly with the supplier. Ensure the SMD footprint matches the 8.7 x 4.0 mm dimensions during PCB layout validation.

Selection Notes

Select this component for applications requiring precise filtering within the 5 GHz U-NII bands. Consider the 1.1 dB insertion loss impact on system gain. Verify thermal requirements against the stated -40°C to +85°C/105°C range for the target environment.

Part Context

This part belongs to Abracon's series of ceramic resonant filters intended for high-frequency signal conditioning. It is specifically engineered to support modern wireless standards by isolating desired frequencies while attenuating interference.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
