AFII-LC-0045

Overview

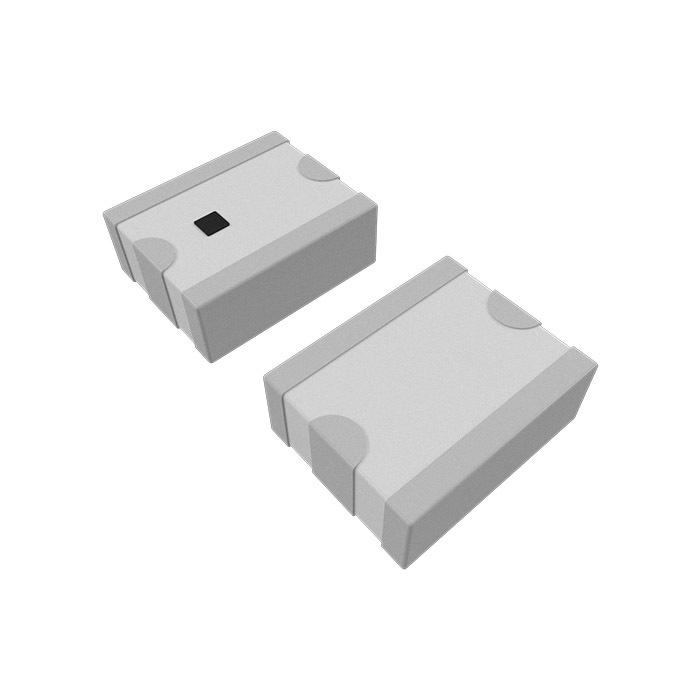

The AFII-LC-0045 is a ceramic bandpass filter designed for RF applications. It operates with a center frequency of 2.45 GHz and a bandwidth of 100 MHz, covering the 2.4 GHz to 2.5 GHz range. The component features an insertion loss of 1.8 dB and supports a power handling capacity of 3W. It utilizes a surface mount 1008 (2520 Metric) package with single-ended input and output terminals.

Feature Summary

• High-quality performance with excellent selectivity
• High out-of-band rejection capabilities
• Low insertion loss design

Applications

• Bluetooth, ZigBee, Thread, and Matter connectivity
• 2.4GHz TWS Audio devices
• Router and networking equipment
• Home automation systems
• Remote sensing applications

Procurement Notes

Verify the specific ordering code against the required packaging format, such as reel or tape-and-reel options, when placing orders. Confirm that the 1008 surface mount package dimensions align with your PCB footprint requirements. Ensure the 3W power rating meets the system's maximum signal strength specifications before finalizing procurement decisions.

Selection Notes

Select this component for designs requiring precise filtering in the 2.4 GHz ISM band. The 100 MHz bandwidth suits narrowband communication protocols. Consider the 1.8 dB insertion loss impact on overall link budget. The ceramic technology offers stability for consistent RF performance in compact electronic assemblies.

Part Context

This part belongs to Abracon LLC's RF filter portfolio, specifically engineered for wireless communication standards. It serves as a critical passive component for signal integrity in modern IoT and consumer electronics. The device complements other Abracon solutions by providing dedicated frequency selection for crowded spectrum environments.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
